Installation





2GR-FE STARTING: STARTER: INSTALLATION

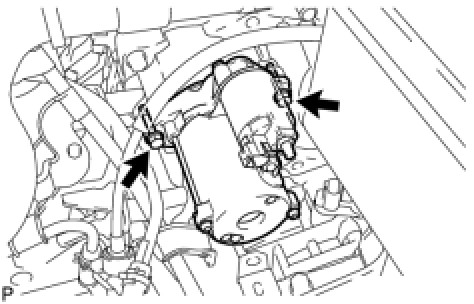

1. INSTALL STARTER ASSEMBLY





(a) Install the starter with the 2 bolts.

Torque : 37 Nm (377 kgf-cm, 27 ft-lbf)

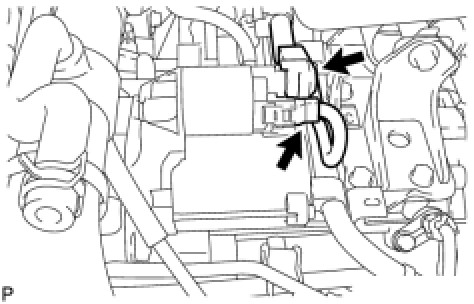

(b) Connect the starter connector.

(c) Install the terminal nut and cover the nut with the cap.

Torque : 9.8 Nm (100 kgf-cm, 88 in-lbf)

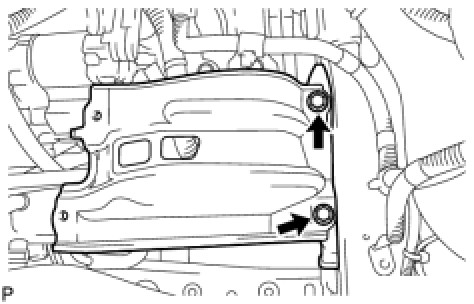

2. INSTALL BATTERY BRACKET REINFORCEMENT





(a) Install the battery bracket reinforcement with the 2 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

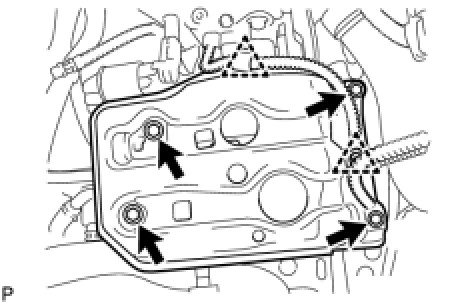

3. INSTALL FRONT BATTERY CARRIER





(a) Install the front battery carrier with the 4 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(b) Connect the 2 clamps of the engine wire.

4. INSTALL BATTERY TRAY

5. INSTALL BATTERY

6. INSTALL BATTERY INSULATOR

7. INSTALL BATTERY CLAMP SUB-ASSEMBLY

(a) Install the battery clamp by tightening the bolt and nut.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf) for nut

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf) for bolt

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
