Installation





DOOR LOCK: BACK DOOR LOCK: INSTALLATION

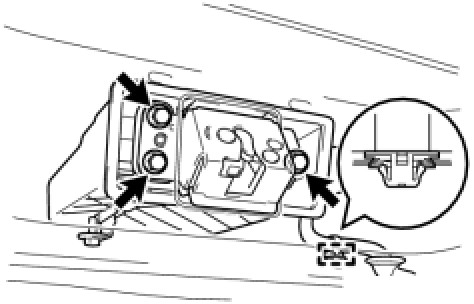

1. INSTALL BACK DOOR LOCK (w/o Power Back Door)

(a) Install the back door lock with the 3 bolts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect the connector.

(c) Engage the clamp.

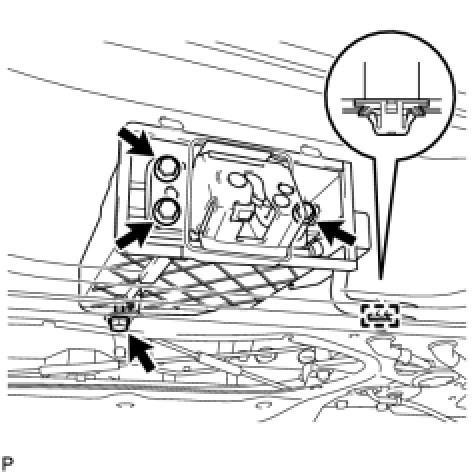

2. INSTALL BACK DOOR LOCK (w/ Power Back Door)

(a) Install the back door lock with the 4 bolts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect the connector.

(c) Engage the clamp.

3. INSTALL BACK DOOR LOCK PROTECTOR Reassembly

4. INSTALL BACK DOOR SERVICE HOLE COVER Reassembly

5. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly

6. INSTALL BACK DOOR PULL STRAP Reassembly

7. INSTALL BACK DOOR STRAP COVER Reassembly

8. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

9. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

10. INSTALL BACK DOOR CENTER GARNISH Reassembly

11. INSTALL POWER BACK DOOR ROD (w/ Power Back Door) Reassembly
