Cruise Control System





CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECU

1. CHECK ECM





(a) Measure the voltage and resistance according to the value(s) in the table below.

HINT

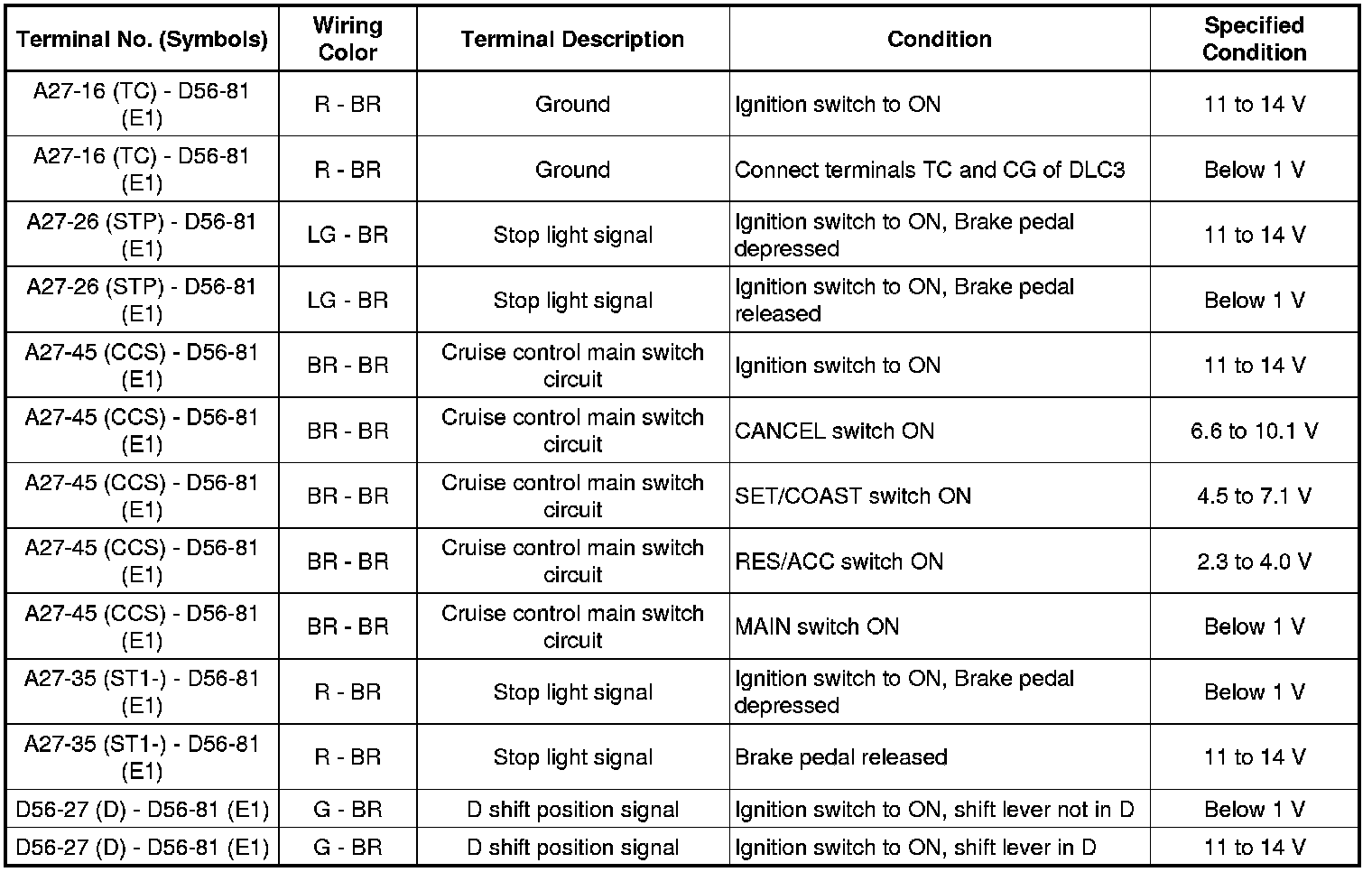

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.
