Installation





TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

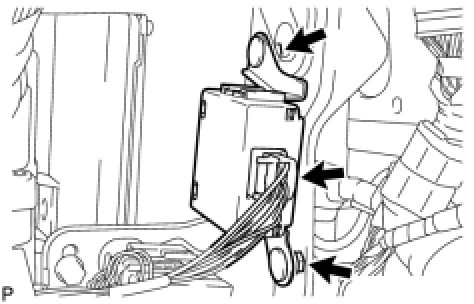

(a) Install the tire pressure warning ECU with the 2 nuts.

Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)





(b) Connect the tire pressure warning ECU connector.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL INSTRUMENT SIDE PANEL RH Installation

5. INSTALL COWL SIDE TRIM BOARD RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation

7. REGISTRATION TRANSMITTER ID

Registration

8. INSPECT TIRE PRESSURE WARNING SYSTEM

Test Mode Procedure

9. INITIALIZE SYSTEM

Initialization
