Removal
WINDOW / GLASS: BACK DOOR POWER WINDOW SWITCH: REMOVAL 1.

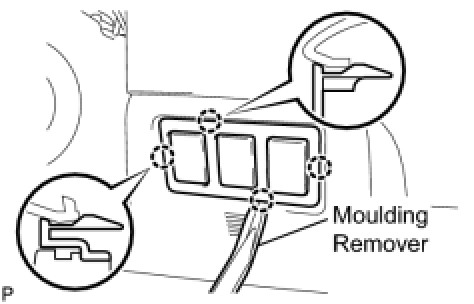

REMOVE NO. 2 SWITCH HOLE BASE
(a)
Using a moulding remover, disengage the 4 claws and remove the No. 2 switch hole base.
2.
REMOVE BACK DOOR POWER WINDOW REGULATOR SWITCH ASSEMBLY
(a)
Disengage the 2 claws and remove the back door power window regulator switch.
