Fluid Pan, A/T

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

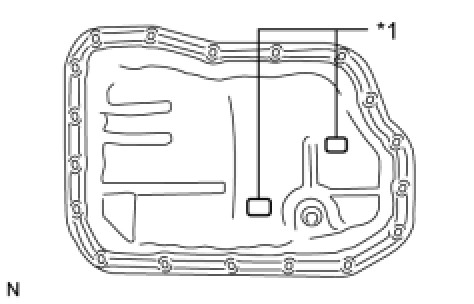

Install the 2 transmission oil cleaner magnets onto the automatic transaxle oil pan as shown in the illustration.

Text in Illustration

Install the automatic transaxle oil pan with the transaxle oil pan gasket onto the automatic transaxle with the 18 bolts.

Precoated Bolt (*1) - Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)

except Precoated bolt - Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
