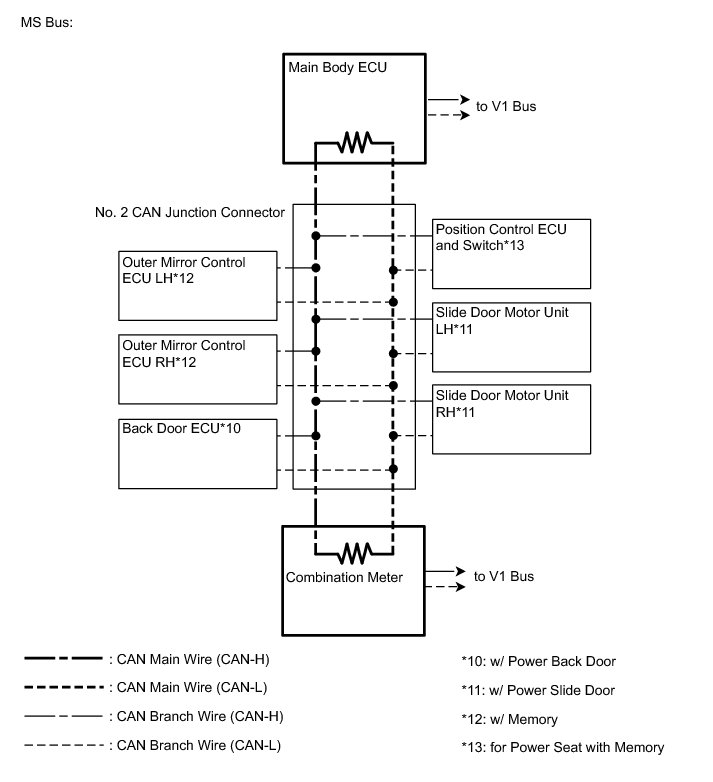

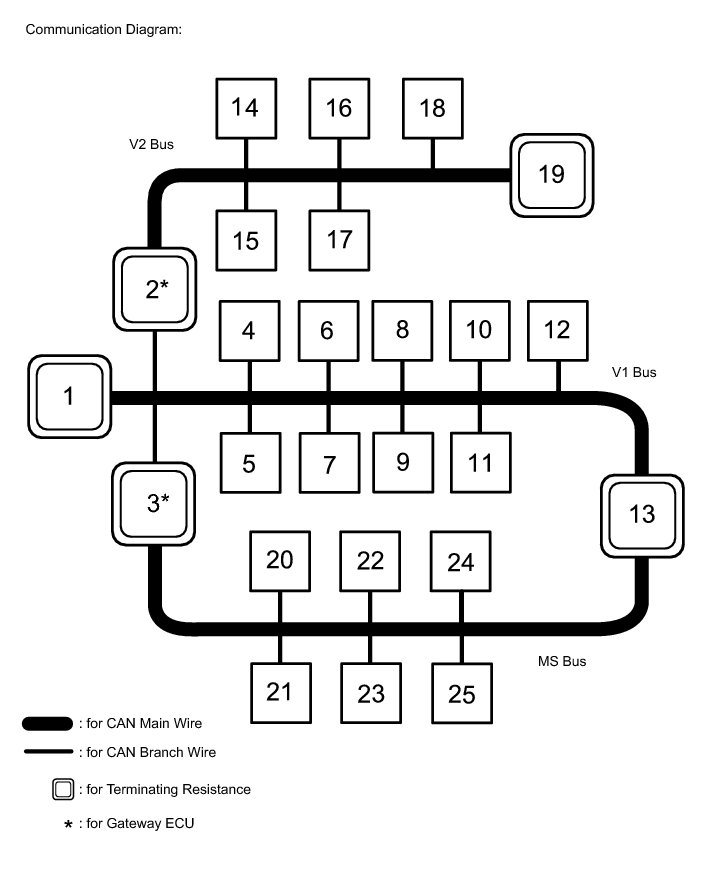

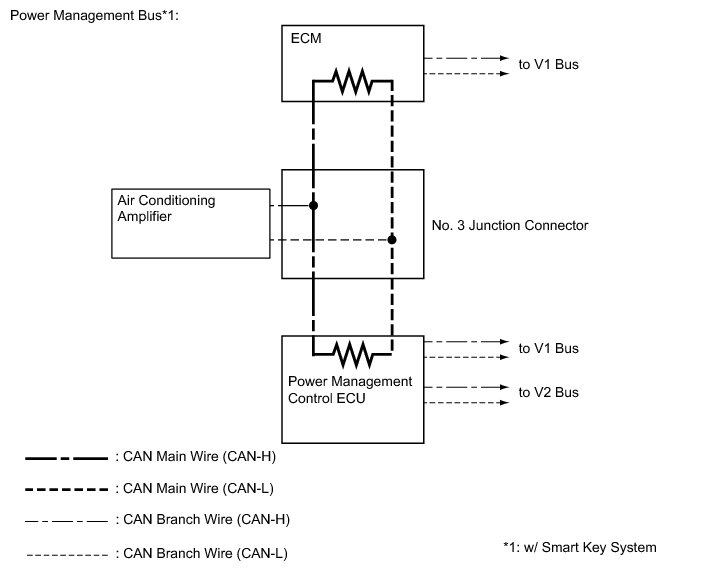

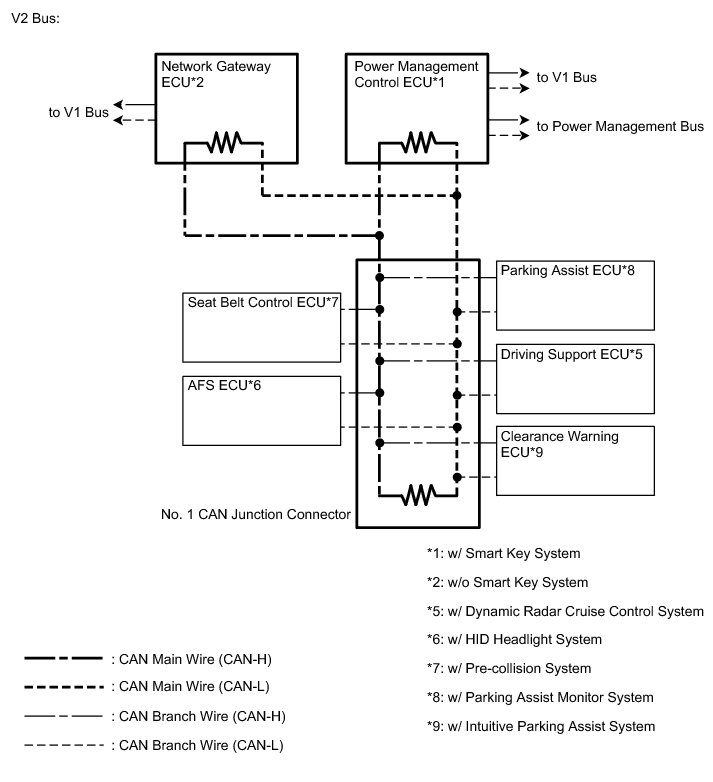

System Diagram

NETWORKING: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

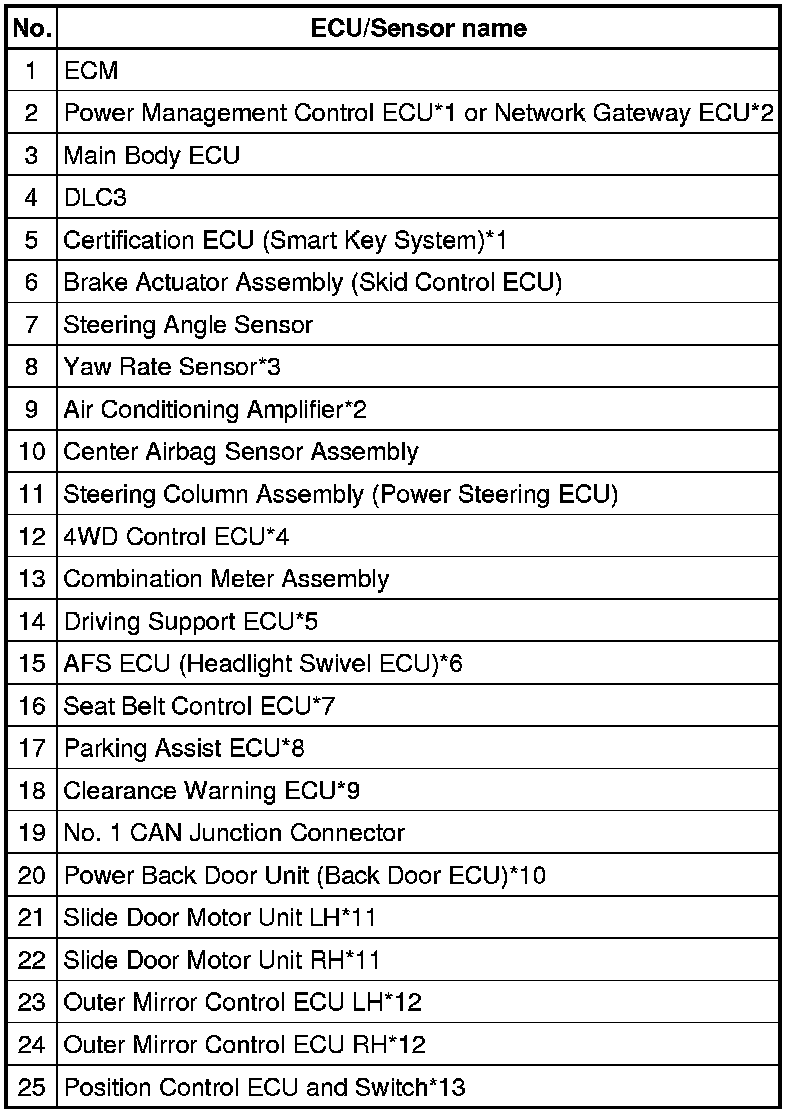

* *1: w/ Smart Key System

* *2: w/o Smart Key System

* *3: w/ VDIM

* *4: for AWD

* *5: w/ Dynamic Radar Cruise Control System

* *6: w/ HID Headlight System

* *7: w/ Pre-collision System

* *8: w/ Parking Assist Monitor System

* *9: w/ Intuitive Parking Assist System

* *10: w/ Power Back Door

* *11: w/ Power Slide Door

* *12: w/ Memory

* *13: for Power Seat with Memory





















HINT

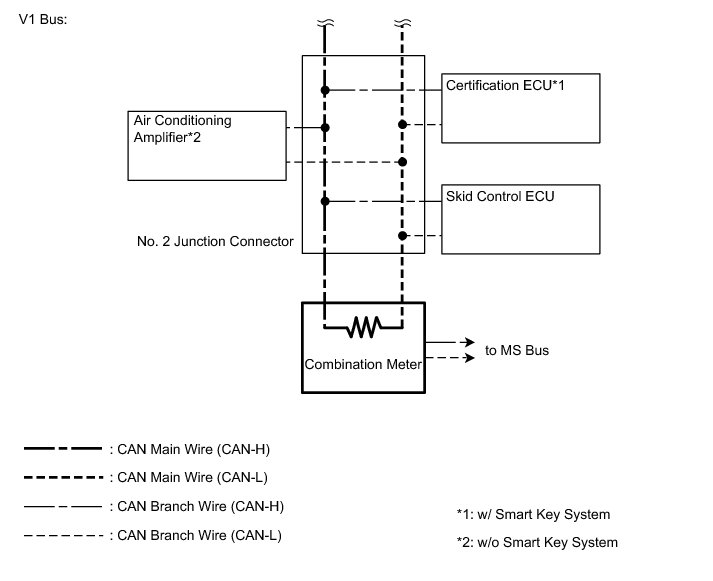

The skid control ECU detects and stores steering sensor and yaw rate sensor DTCs and performs DTC communication by receiving information from the steering sensor and yaw rate sensor.
