Installation





BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

1. INSTALL FRONT SPEED SENSOR

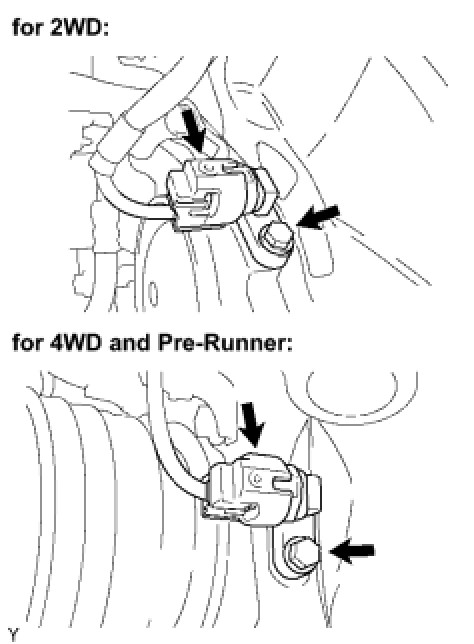

(a) Install the front speed sensor with the bolt.

Torque : 8.3 Nm (85 kgf-cm, 73 in-lbf)

NOTICE:
Make sure that the sensor tip is clean.

(b) Connect the speed sensor connector.

2. INSTALL FRONT WHEEL

Torque : 113 Nm (1152 kgf-cm, 83 ft-lbf)

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

4. CHECK VSC SENSOR SIGNAL (for Hydraulic Brake Booster)

Test Mode Procedure

5. CHECK VSC SENSOR SIGNAL (for Vacuum Brake Booster)

Test Mode Procedure
