Blower Motor: Testing and Inspection





AIR CONDITIONING: FRONT BLOWER MOTOR: INSPECTION

1. INSPECT BLOWER MOTOR

(a) Inspect the blower motor.

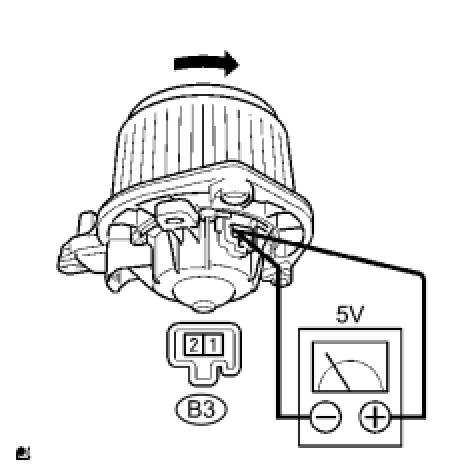

(1) Connect the positive (+) lead from to terminal 1 and negative (-) lead to terminal 2, then check that the motor operates smoothly.

CAUTION:
* Use safety glasses
* Do not use battery power, use DC power supply (30 A).
* Do not operate the motor and fan assembly at over 5 V.
* Be sure to hold the motor in a stable and safe way.
If the result is not as specified, replace the blower motor.
