Installation

2TR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

1. INSTALL FAN & GENERATOR V BELT

(a) Provisionally install the V belt onto each pulley.

NOTICE:
Install the V belt onto each pulley and finally install the V belt onto the V-ribbed belt tensioner.

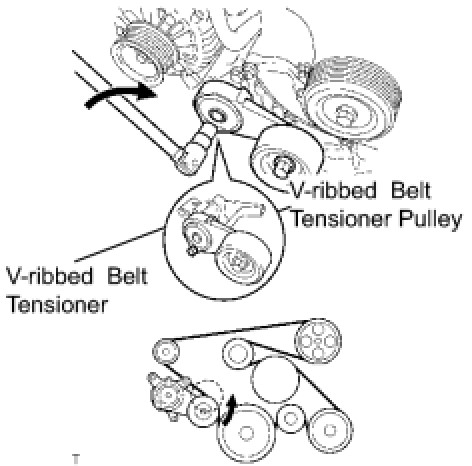

(b) Turn the hexagonal bolt on the V-ribbed belt tensioner clockwise and install the V belt onto the V-ribbed belt tensioner pulley.

2. INSPECT FAN & GENERATOR V BELT Testing and Inspection
