Installation

2TR-FE EMISSION CONTROL: AIR PUMP: INSTALLATION

1. INSTALL AIR PUMP ASSEMBLY

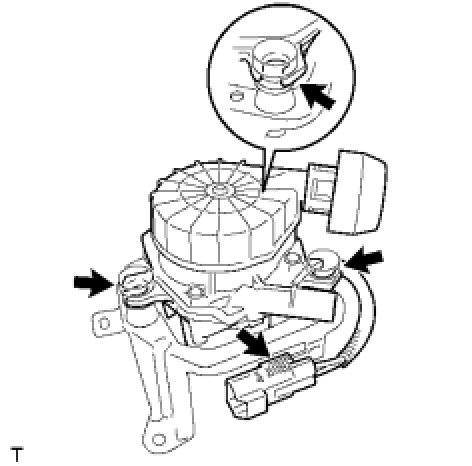

(a) Engage the 3 fittings of the air pump insulator, and install the air pump onto the bracket.

(b) Connect the air pump connector clamp.

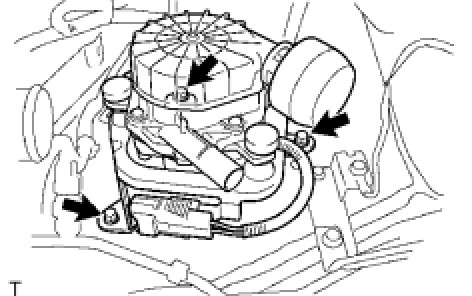

(c) Install the air pump with bracket with the 3 bolts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

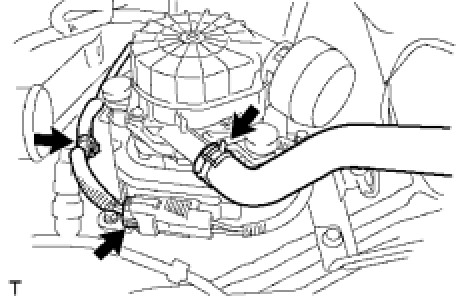

(d) Connect the air pump connector and wire harness clamp.





(e) Connect the air injection system No. 1 hose.

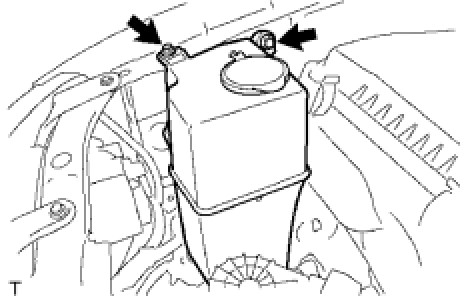

(f) Install the washer jar with the 2 bolts.





Torque : 6 Nm (56 kgf-cm, 49 in-lbf)

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
