Camshaft

CAMSHAFT BEARING CAP






Temporarily install the camshaft bearing cap No.1.

Check the proper location of each camshaft bearing cap No.2 and install them.

Install a new O-ring to the camshaft bearing cap No.1.






Temporarily install the oil delivery pipe.

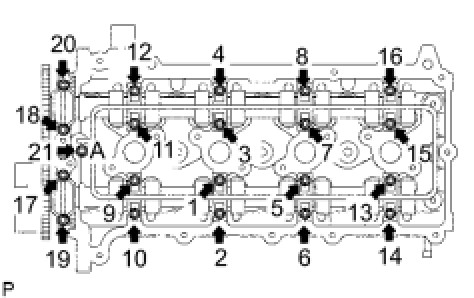

Tighten the 21 bolts and 20 washers in the order shown in the illustration.






Torque 12 Nm (122 kgf-cm, 9 ft-lbf) for bolt A

Torque 16 Nm (160 kgf-cm, 11 ft-lbf) for except bolt A



CAMSHAFT BEARING CAP






Temporarily install the camshaft bearing cap No.1.

Tighten the 21 bolts and 20 washers in the order shown in the illustration.






Torque 12 Nm (122 kgf-cm, 9 ft-lbf) for bolt A

Torque 16 Nm (160 kgf-cm, 11 ft-lbf) for except bolt A




CAMSHAFT

Tighten the bolts in the order shown in the illustration.






Torque 12 Nm (122 kgf-cm, 9 ft-lbf) for bolt A

Torque 16 Nm (158 kgf-cm, 11 ft-lbf) for bolts except bolt A

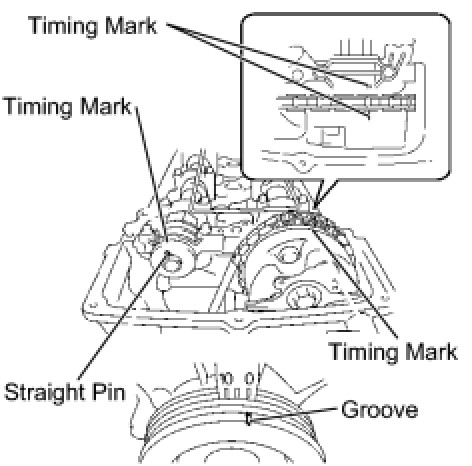

Check that each timing mark is set in the position shown in the illustration.






Hold the hexagonal lobe of the No. 2 camshaft with the adjustable wrench.






Tighten the bolt.

Torque 78 Nm (795 kgf-cm, 58 ft-lbf)


Remove the 3.0 mm (0.118 in.) diameter bar from the chain tensioner.

Using a 10 mm socket hexagon wrench, install the timing gear case with head straight screw plug.






Torque 17 Nm (170 kgf-cm, 12 ft-lbf)
