Axle Nut
FRONT AXLE HUB NUT

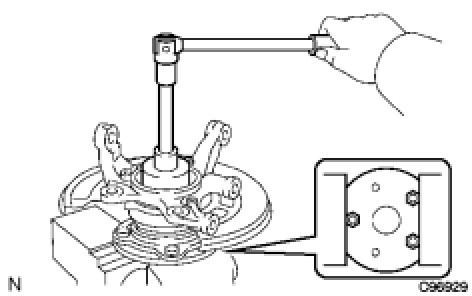

Using a socket wrench (36 mm), install a new lock nut onto the axle hub.
Torque 199 Nm (2,029 kgf-cm, 147 ft-lbf)
Using a chisel and hammer, stake the lock nut.
Using a socket wrench (36 mm), install a new lock nut onto the axle hub.
Torque 199 Nm (2,029 kgf-cm, 147 ft-lbf)
Using a chisel and hammer, stake the lock nut.
