Installation
2TR-FE STARTING: STARTER: INSTALLATION 1.
INSTALL STARTER ASSEMBLY
(a)

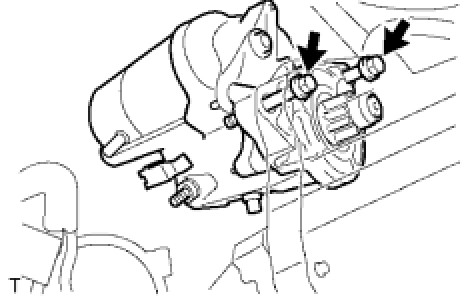

Install the starter with the 2 bolts.
Torque : 37 Nm (377 kgf-cm, 27 ft-lbf) (b)

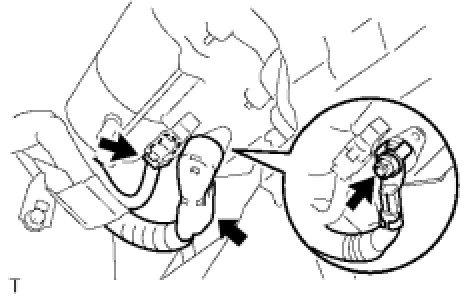

Connect the starter connector.
(c)
Install the starter wire harness with the nut.
Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf) (d)
Install the terminal cap.
2.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
