Installation
A340E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSTALLATION 1.
INSTALL SPEED SENSOR
(a)
Coat a new O-ring with Toyota Genuine ATF Type T-IV or equivalent.
(b)

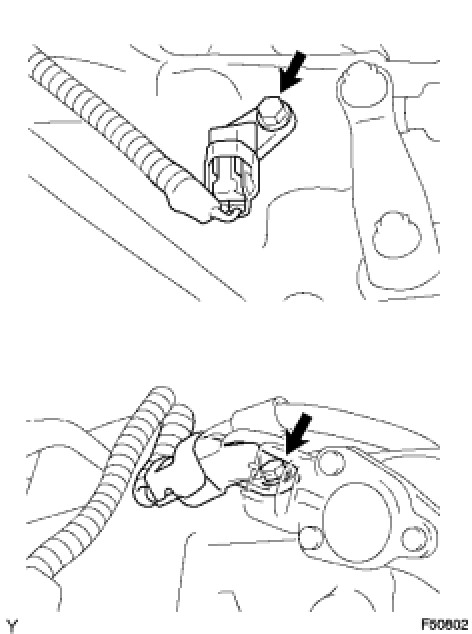

Install the speed sensor with the bolt.
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf) (c)
Connect the speed sensor connector.
