Removal
A340E AUTOMATIC TRANSMISSION: ATF TEMPERATURE SENSOR: REMOVAL 1.

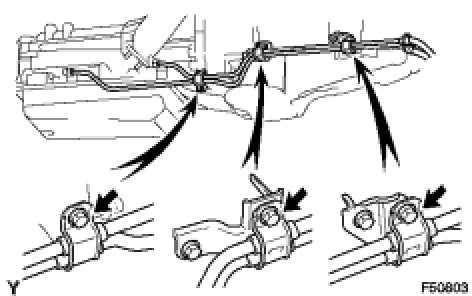

DISCONNECT NO. 1 OIL COOLER INLET TUBE
(a)
Remove the 3 bolts and 3 clamps.
(b)
Using union nut wrench, disconnect the oil cooler inlet tube No. 1.
2.

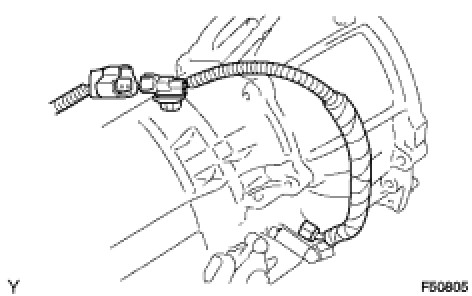

REMOVE TEMPERATURE SENSOR
(a)
Disconnect the temperature sensor connector.
(b)
Remove the temperature sensor.
(c)
Remove the O-ring from the temperature sensor.
