Installation (from 08/2011)





SEAT: SEAT MEMORY SWITCH (w/ Seat Position Memory System): INSTALLATION

1. INSTALL SEAT MEMORY SWITCH

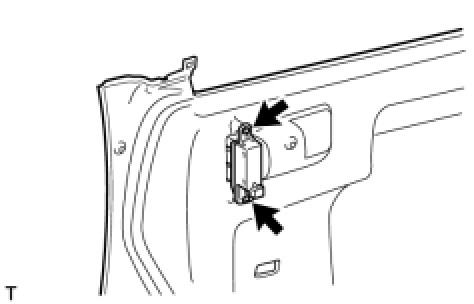

(a) Install the seat memory switch with the 2 screws.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly (from 08/2011)

3. INSTALL FRONT DOOR ARMREST COVER LH

4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly (from 08/2011)

5. INSTALL FRONT ARMREST UPPER BASE PANEL LH Reassembly (from 08/2011)

6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Reassembly (from 08/2011)
