Trunk / Liftgate Lock: Testing and Inspection
DOOR LOCK: BACK DOOR LOCK (for Hatchback): INSPECTION 1.
INSPECT BACK DOOR LOCK ASSEMBLY
(a)
Check the operation of the back door lock motor.

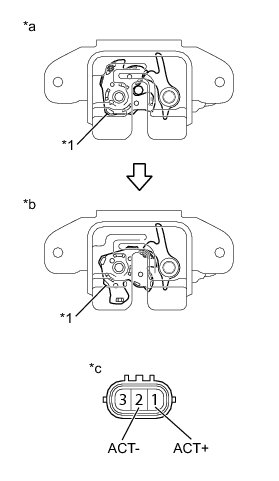

Text in Illustration (1)
Move the back door lock to the lock position.
(2)
Apply the battery voltage and check the operation of the back door lock motor.
OK: *
If the result is not as specified, replace the back door lock assembly.
