Removal (from 07/2011)
1NZ-FE ENGINE CONTROL: MASS AIR FLOW METER (for Hatchback): REMOVAL 1.
REMOVE MASS AIR FLOW METER
(a)
Disengage the wire harness clamp.
(b)
Disconnect the connector of the mass air flow meter.
(c)
Remove the 2 screws and the mass air flow meter.

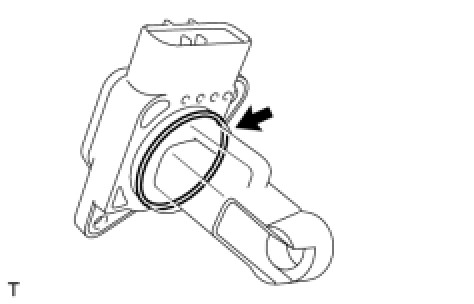

(d)
Remove the O-ring.
