Engine Temperature Sensor: Testing and Inspection





1NZ-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR (for Hatchback): INSPECTION

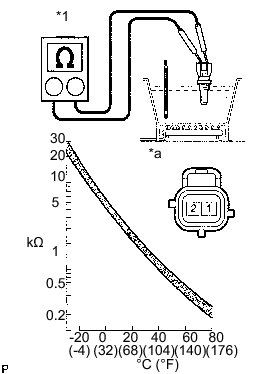

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

(a) Measure the resistance according to the value(s) in the table below.

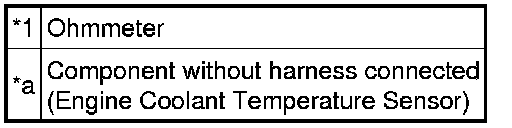

Text in Illustration

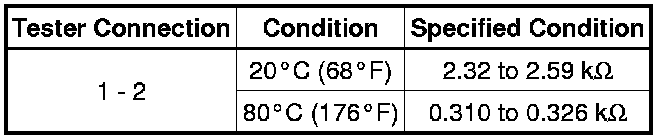

Standard Resistance:





NOTICE:
In case of checking the engine coolant temperature sensor in water, do not allow water to contact the terminals. After checking, dry the engine coolant temperature sensor.

If the result is not as specified, replace the engine coolant temperature sensor.
