Torque Specifications (from 07/2011)

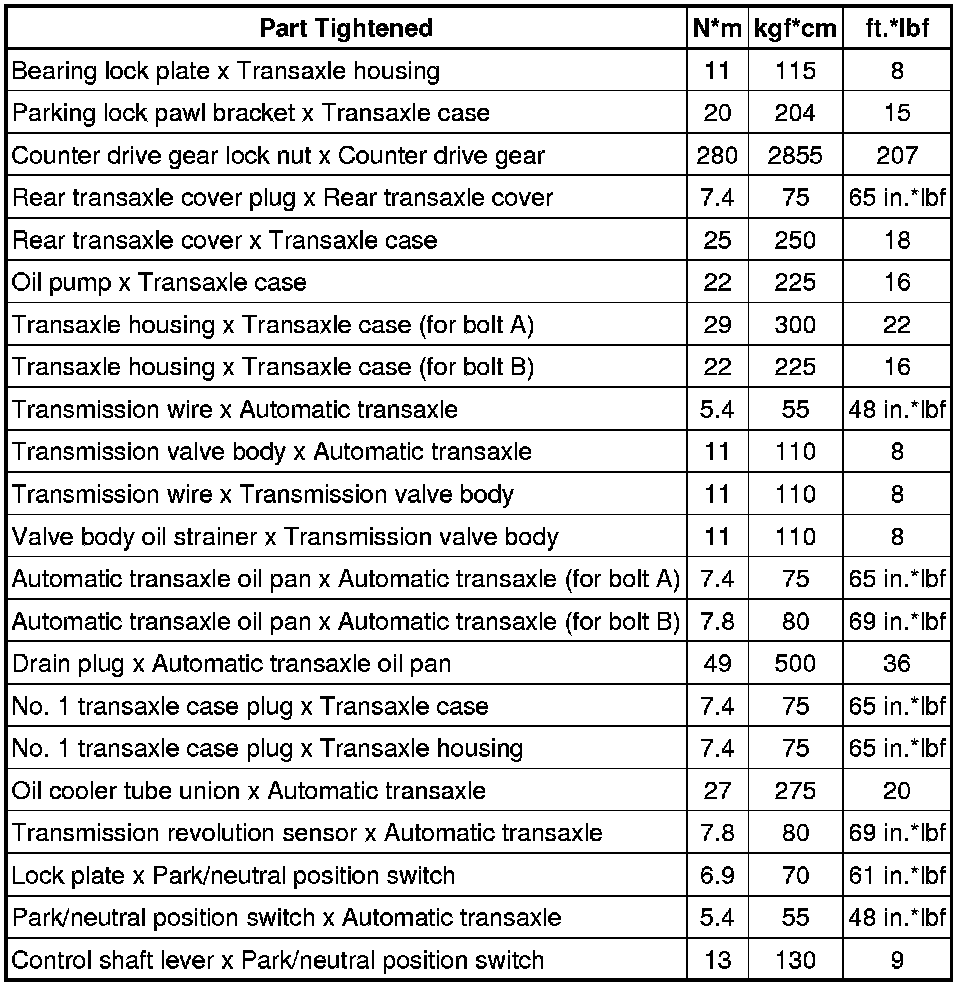

SPECIFICATIONS: U340E AUTOMATIC TRANSMISSION / TRANSAXLE (for Hatchback): TORQUE SPECIFICATIONS

Speed Sensor





Transmission Wire





Valve Body Assembly

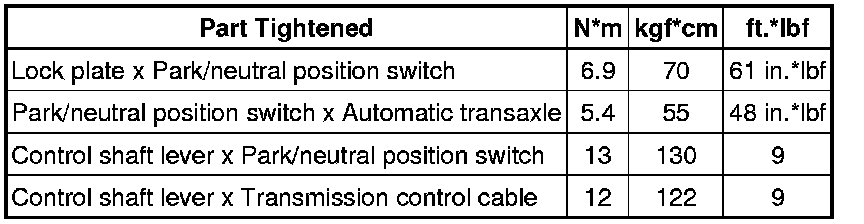

Park/Neutral Position Switch





Shift Lever

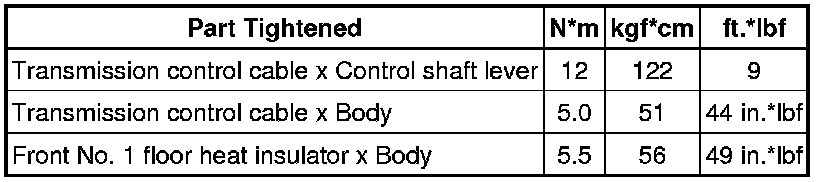

Transmission Control Cable Assembly

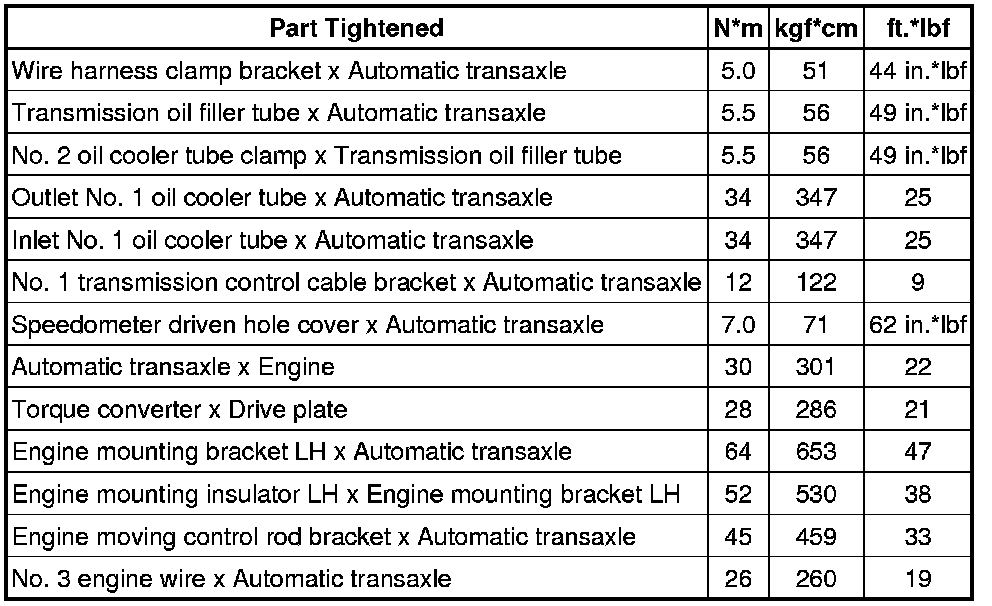

Automatic Transaxle Assembly





Automatic Transaxle Unit





Oil Pump





Differential Case
