Ignition Switch Lock Cylinder: Testing and Inspection
STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Sedan): INSPECTION 1.

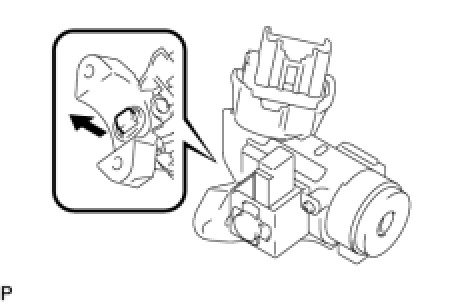

INSPECT STEERING LOCK OPERATION
(a)
Remove the key and check that the steering lock function is activated.
(b)

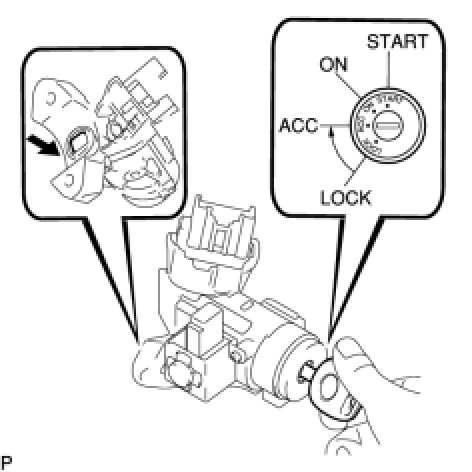

Insert the key, turn the
ignition switch to on (ACC) and check that the steering lock function is inactivated.
