Fuse Location

Fuse Location

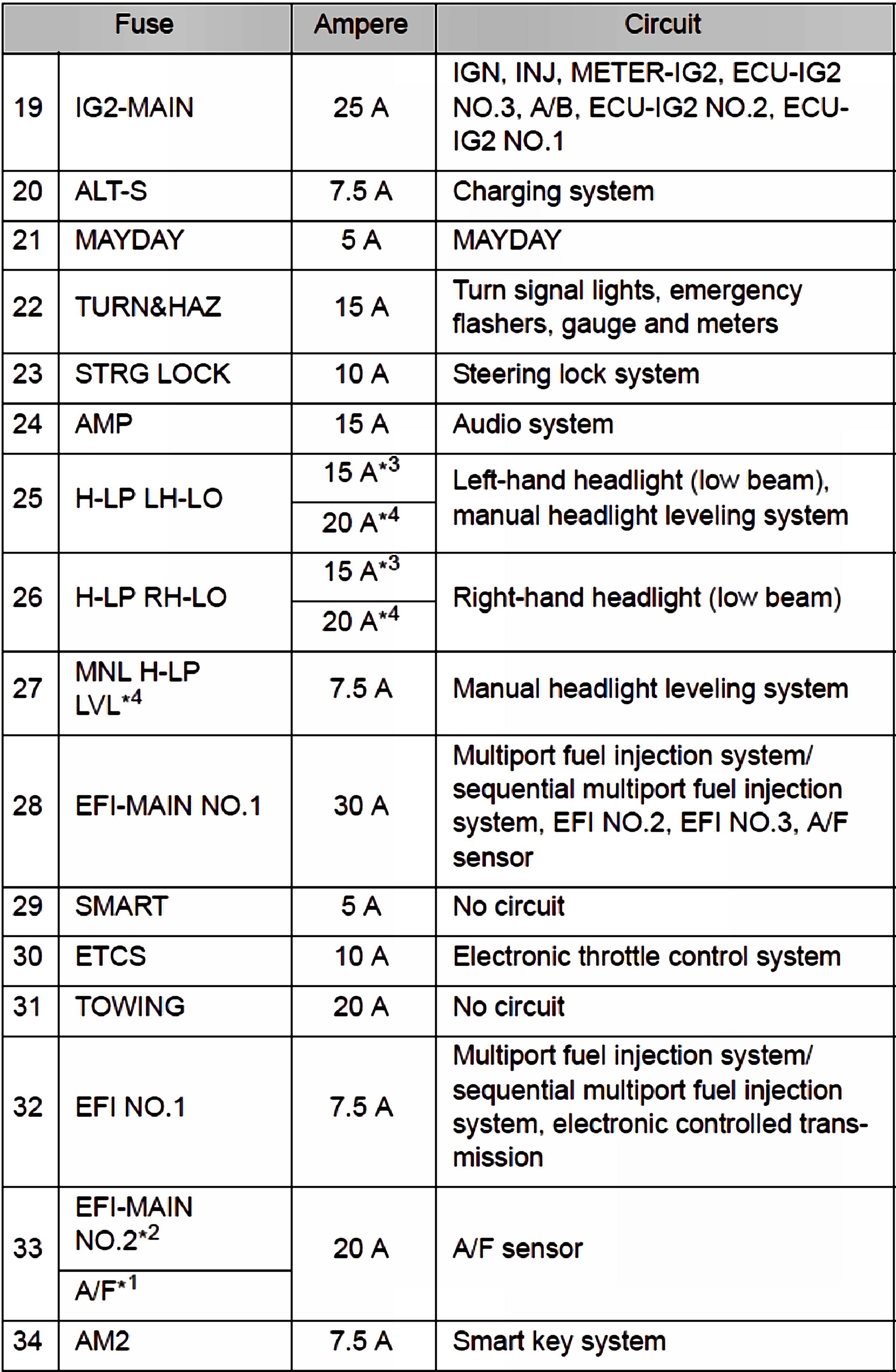

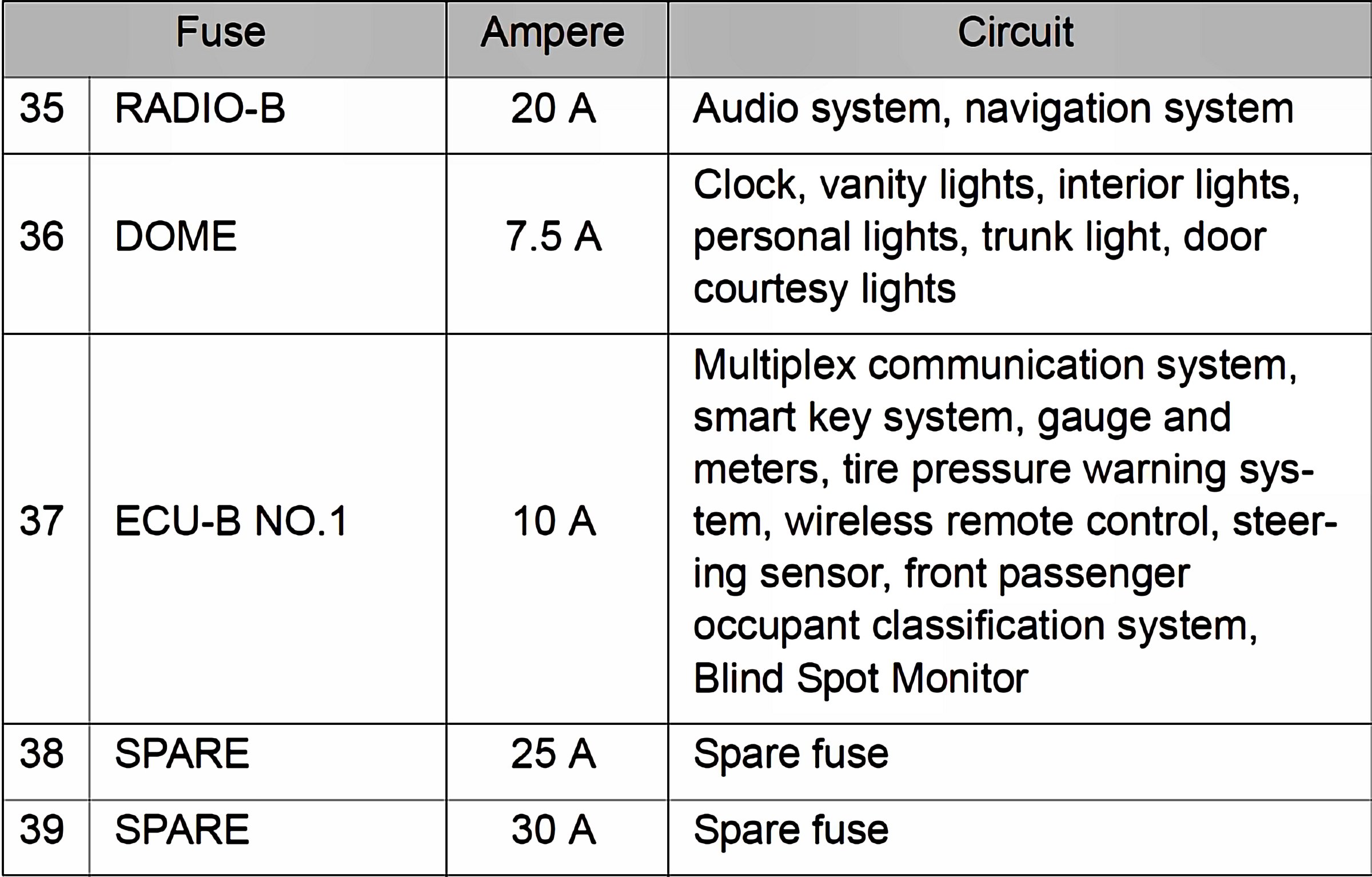

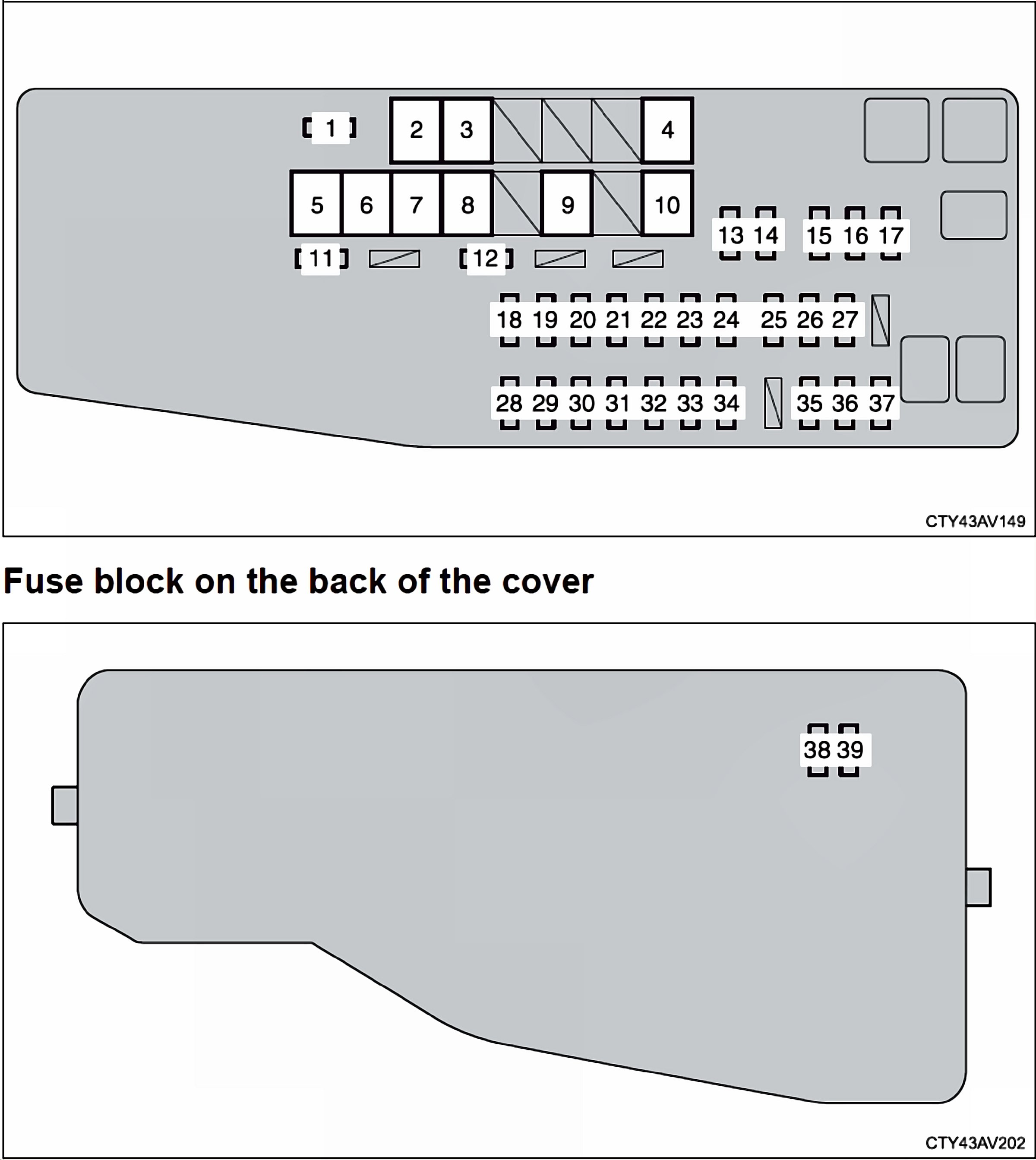

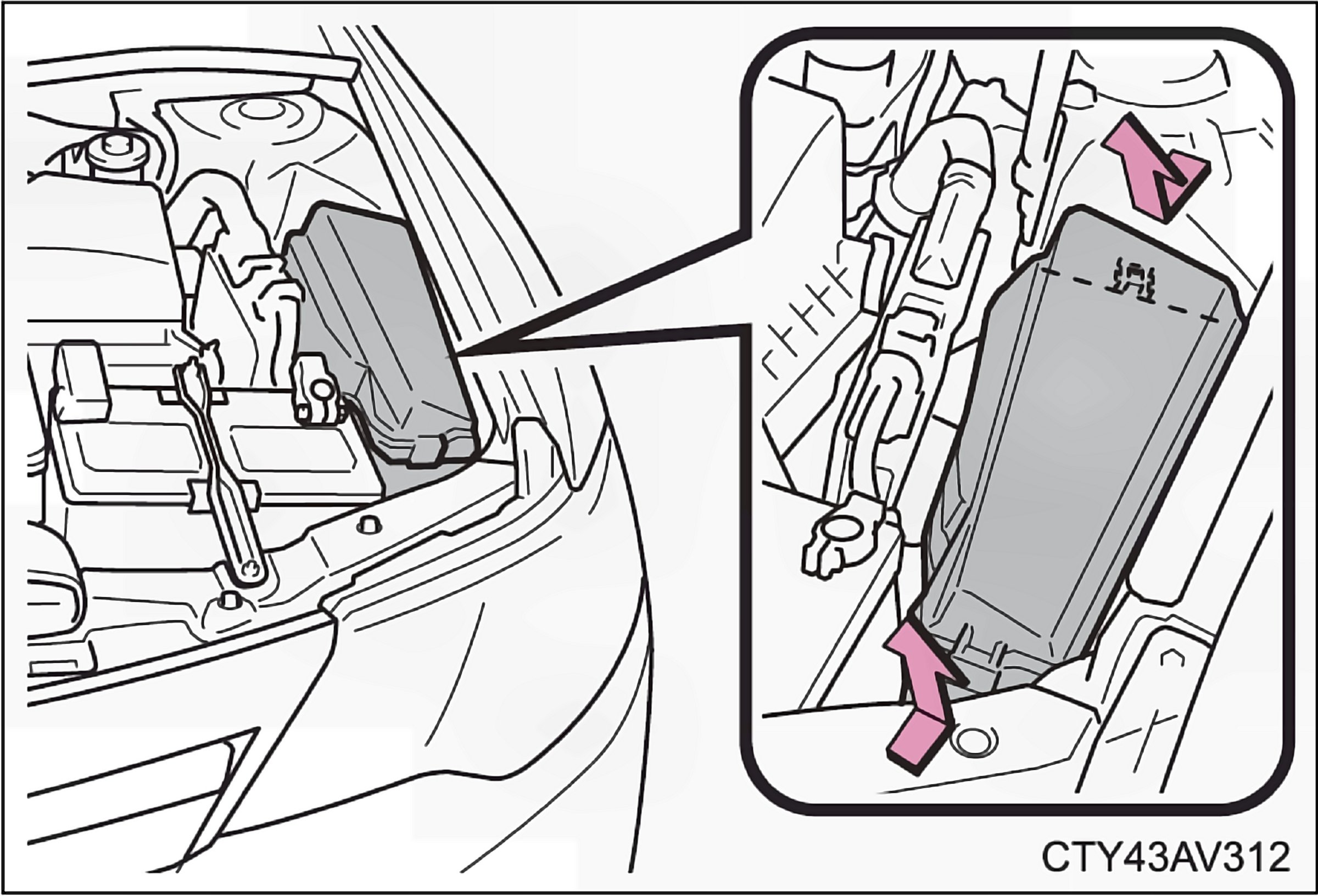

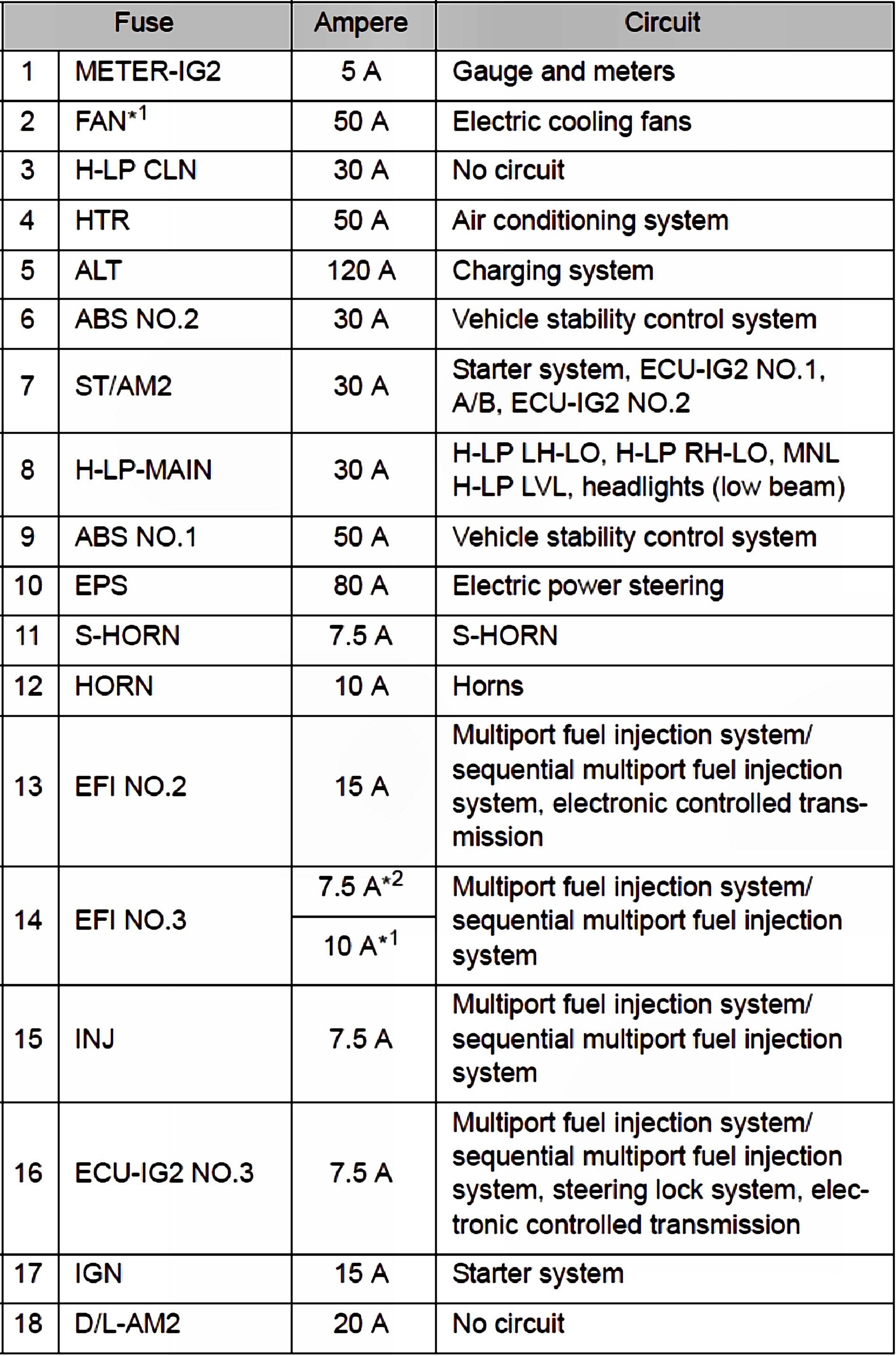

Engine Compartment

*1: 3.5 L V6 (2GR-FE) engine
*2: 2.5 L 4-cylinder (2AR-FE, 2AR-FBE) engine
*3: Vehicles with halogen headlight
*4: Vehicles with discharge headlight

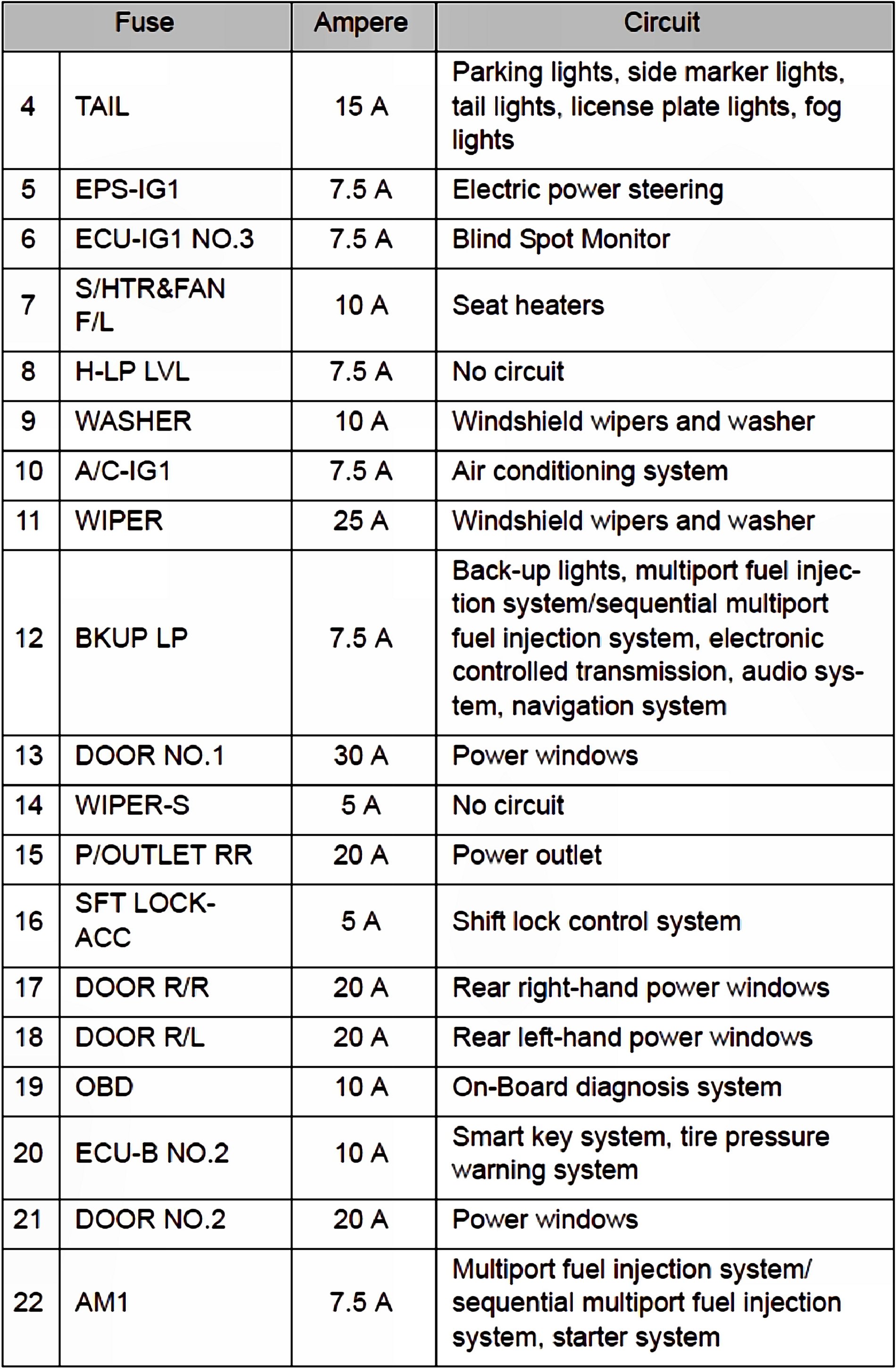

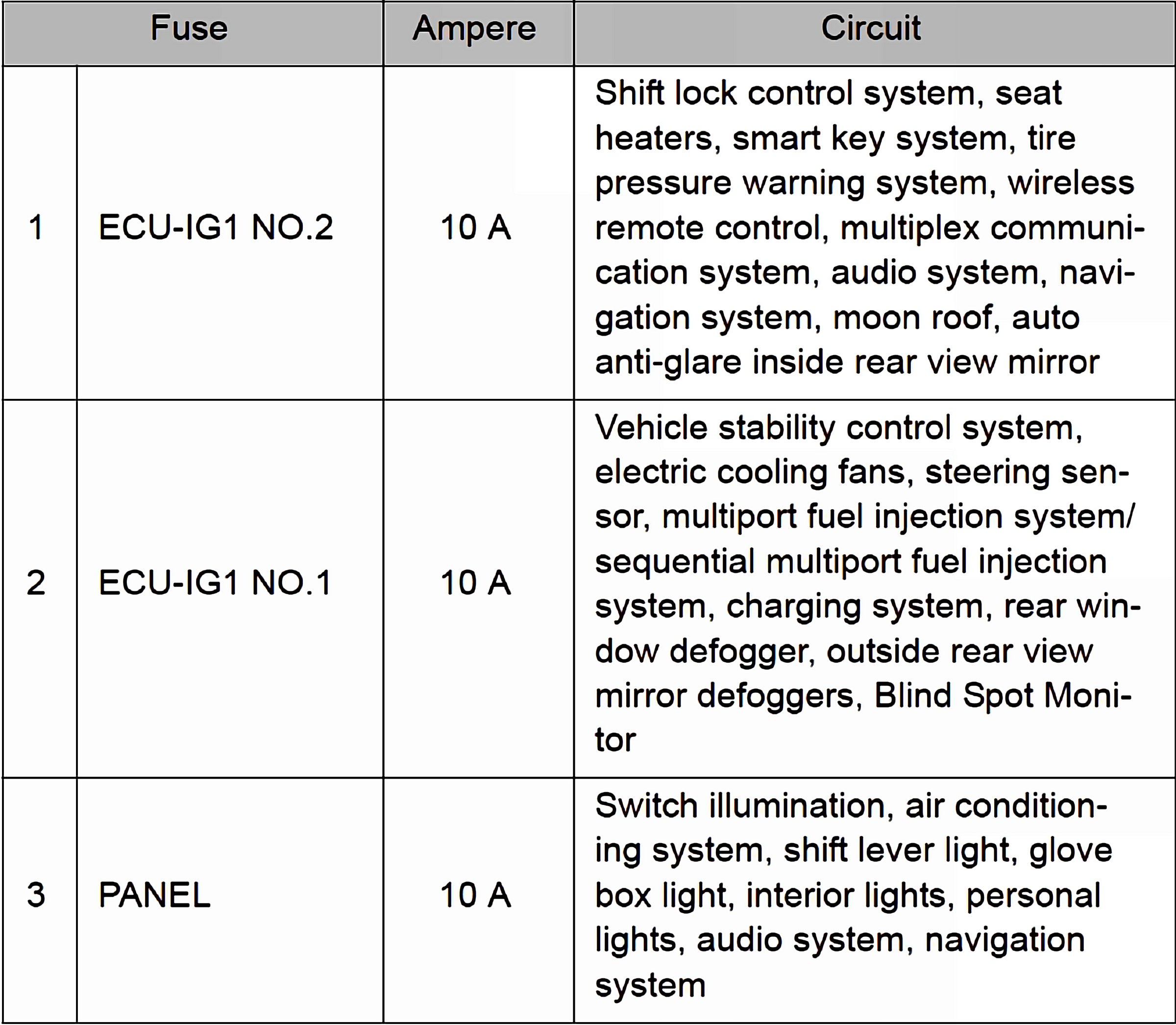

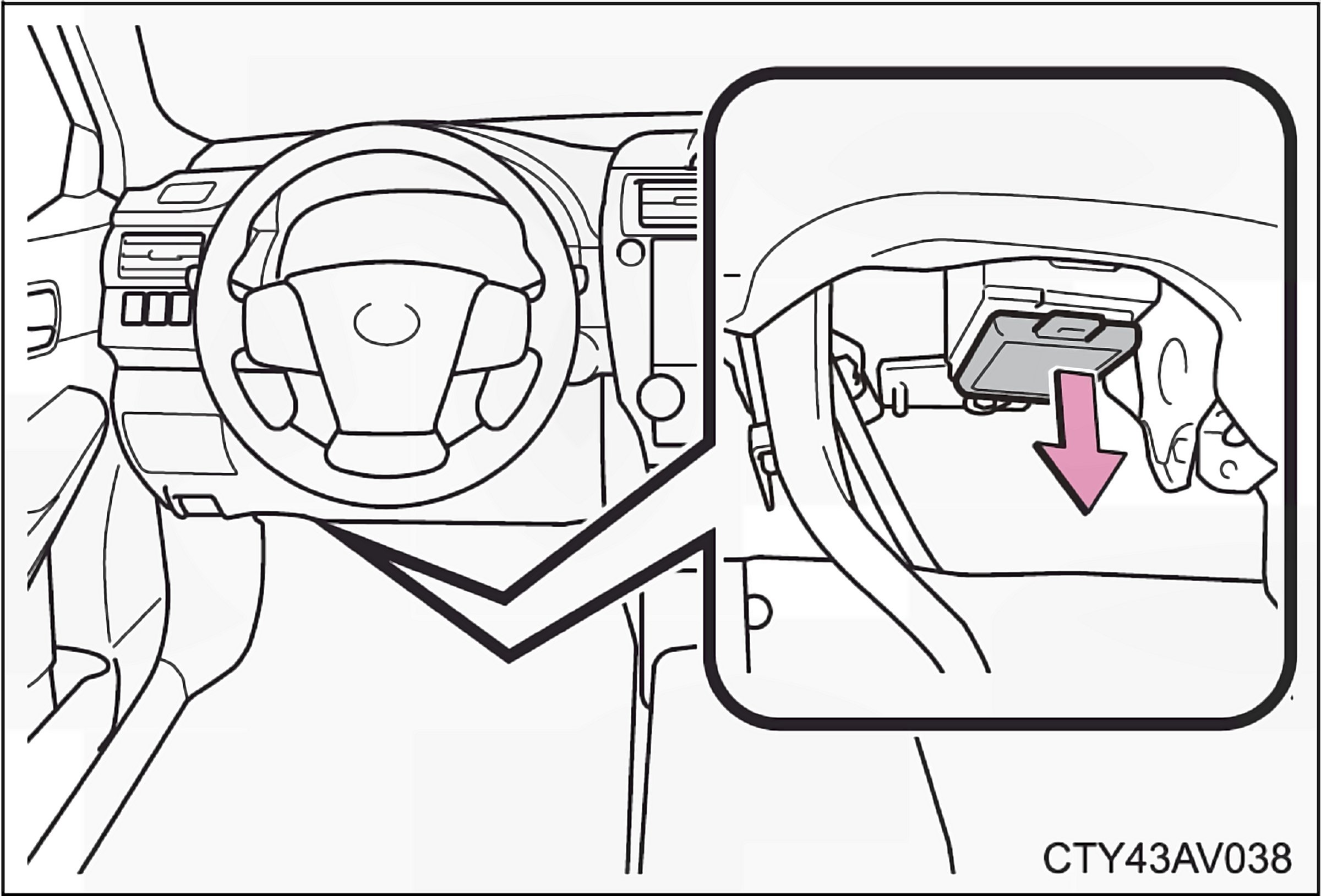

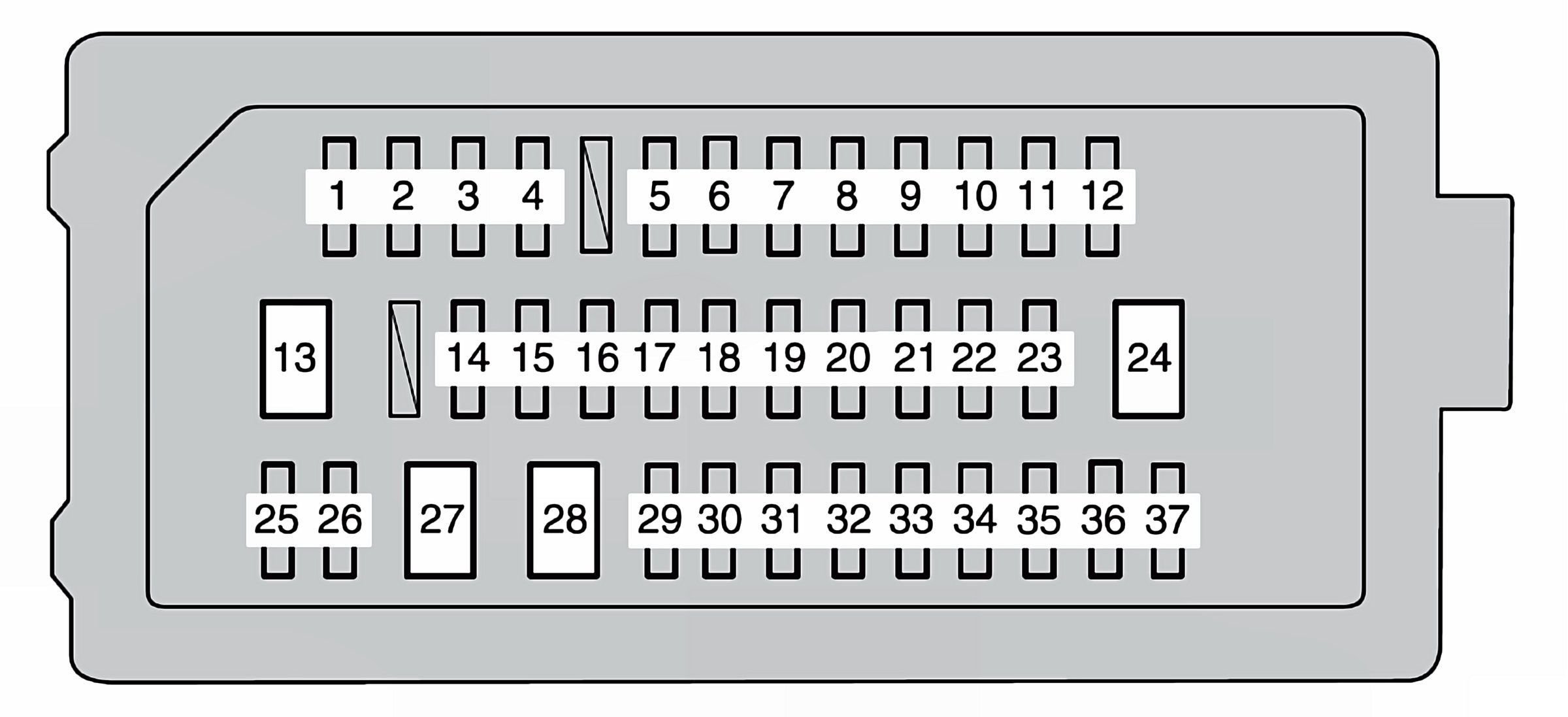

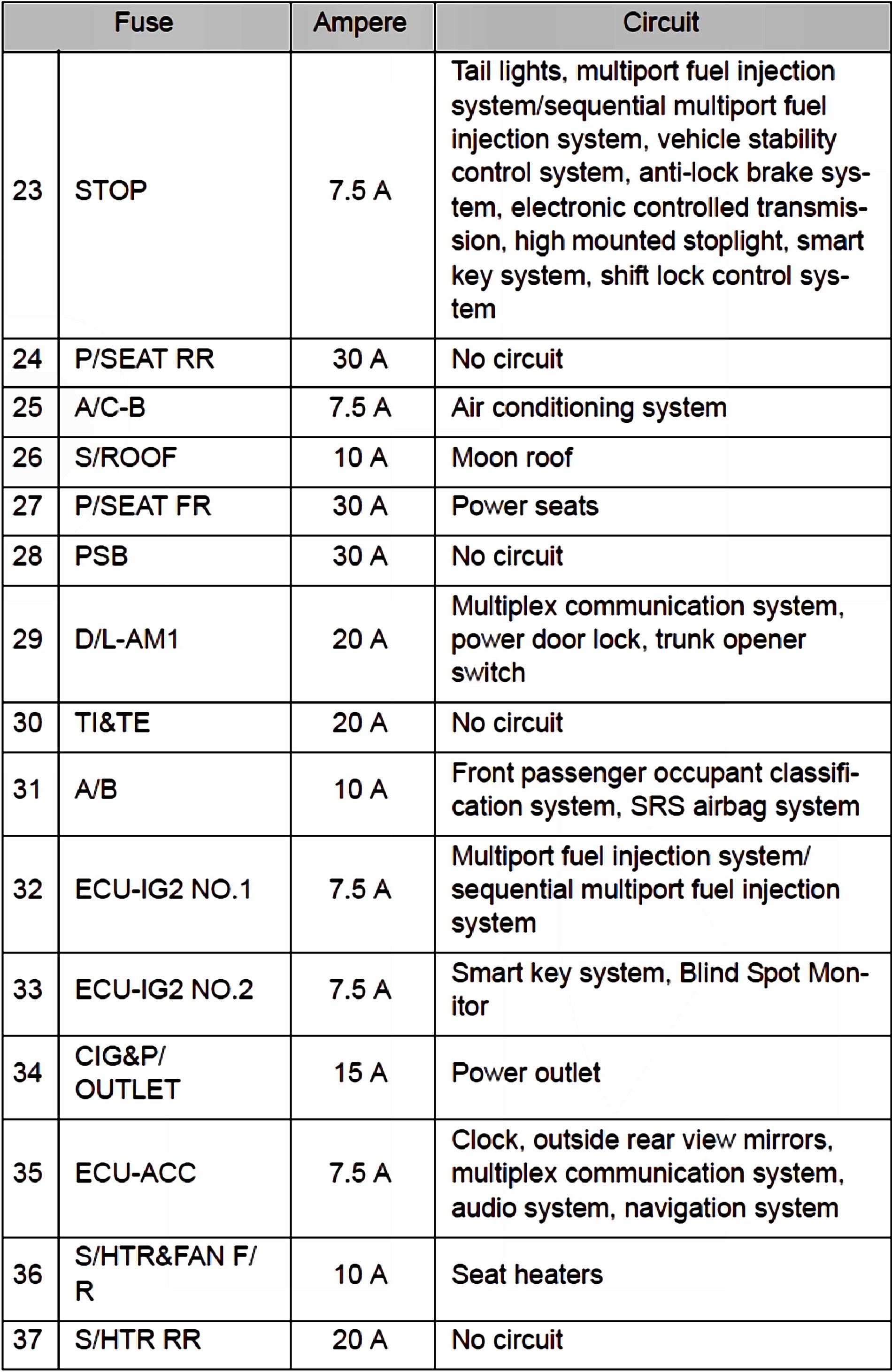

Under the Instrument Panel
