Installation





2AZ-FE ENGINE CONTROL: ECM: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL ECM

(a) Install the 2 ECM brackets onto the ECM with the 4 screws.





(b) Install the ECM with the 3 bolts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(c) Connect the 2 ECM connectors.

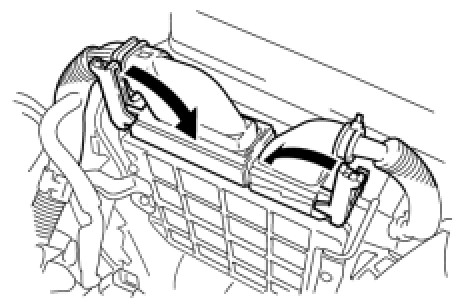

(1) Connect the 2 ECM connectors and lower the 2 levers.

NOTICE:
* When connecting the connectors, make sure that dirt, water or other foreign matter does not get caught between the connectors and other parts.
* Make sure that the 2 levers are securely locked.

(d) Install the wire harness clamp.





2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Installation

4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

5. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL Installation

6. PERFORM INITIALIZATION

Repair Instruction - Initialization.
