Alignment
Wheel Alignment Specifications (Unloaded Vehicle)

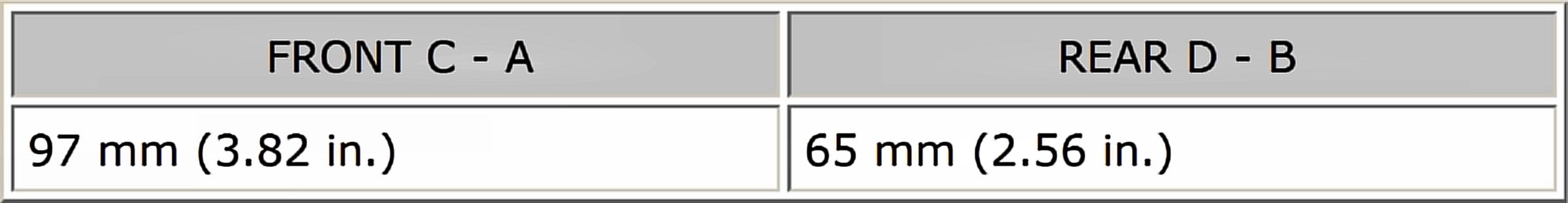

Standard Vehicle Height:

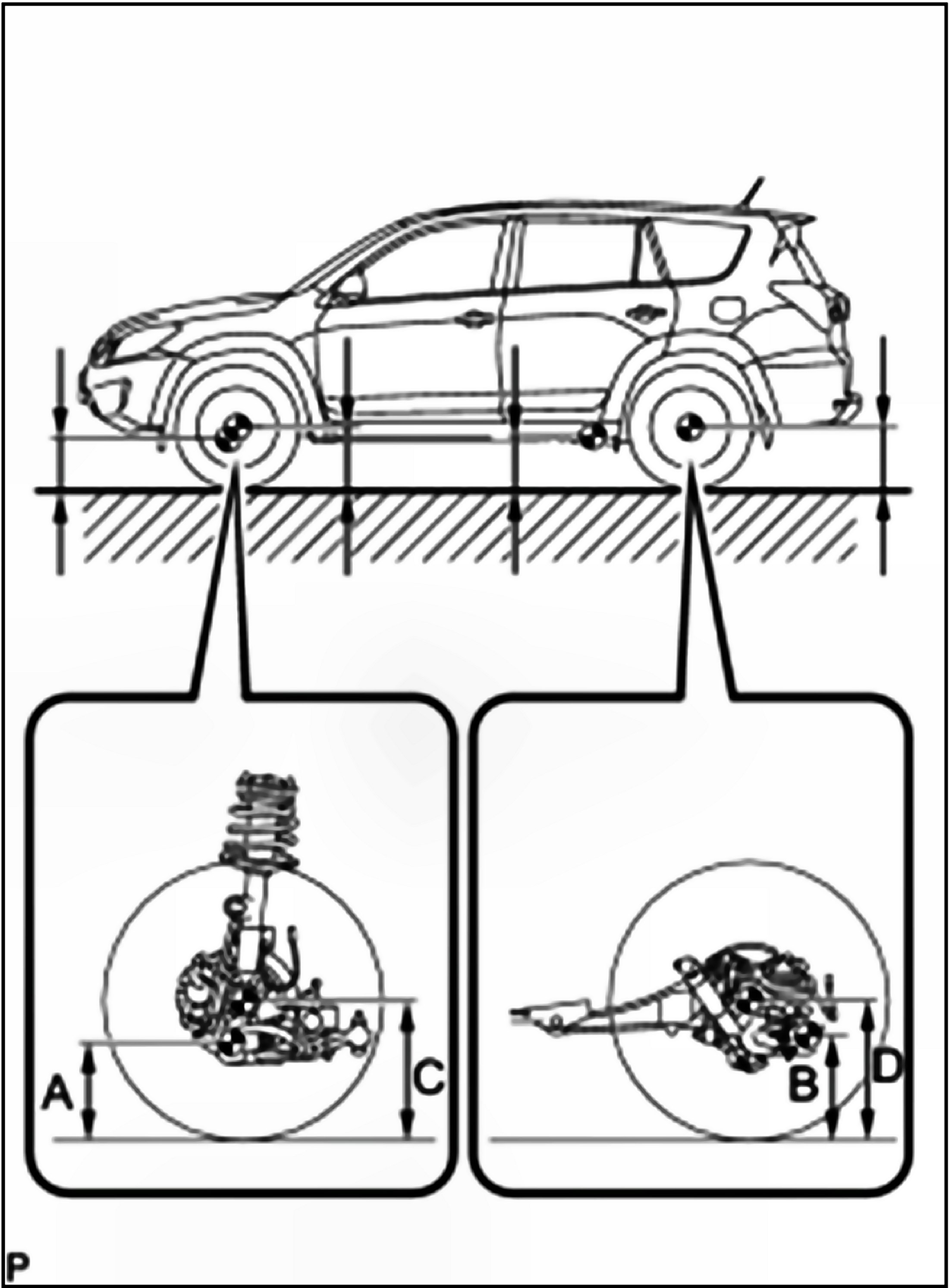

Measuring Points:
A Ground clearance of center of front No. 1 lower suspension arm bushing set bolt
B Ground clearance of center of rear No. 2 suspension arm bushing set bolt
C Ground clearance of center of front wheel
D Ground clearance of center of rear wheel

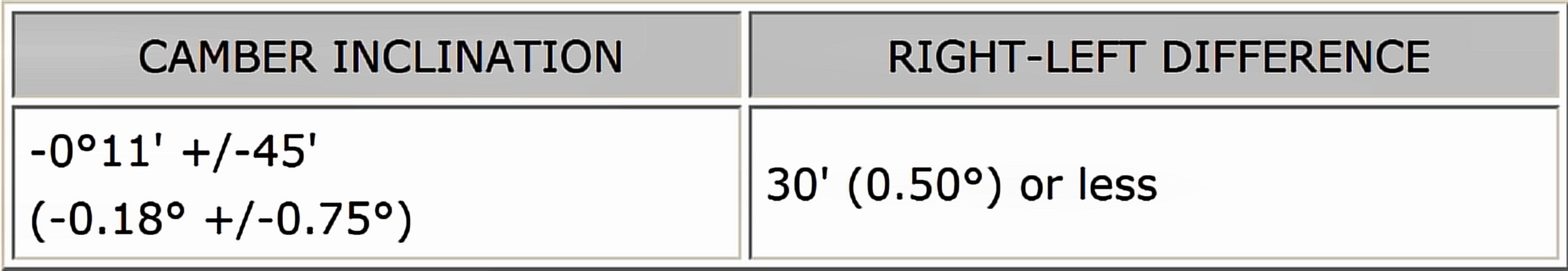

Standard Camber Inclination:

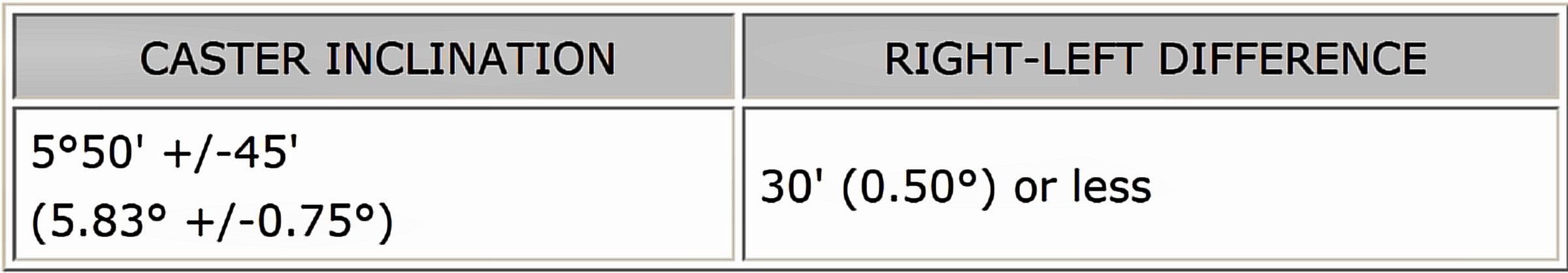

Standard Caster Inclination:
Standard Steering Axis Inclination:

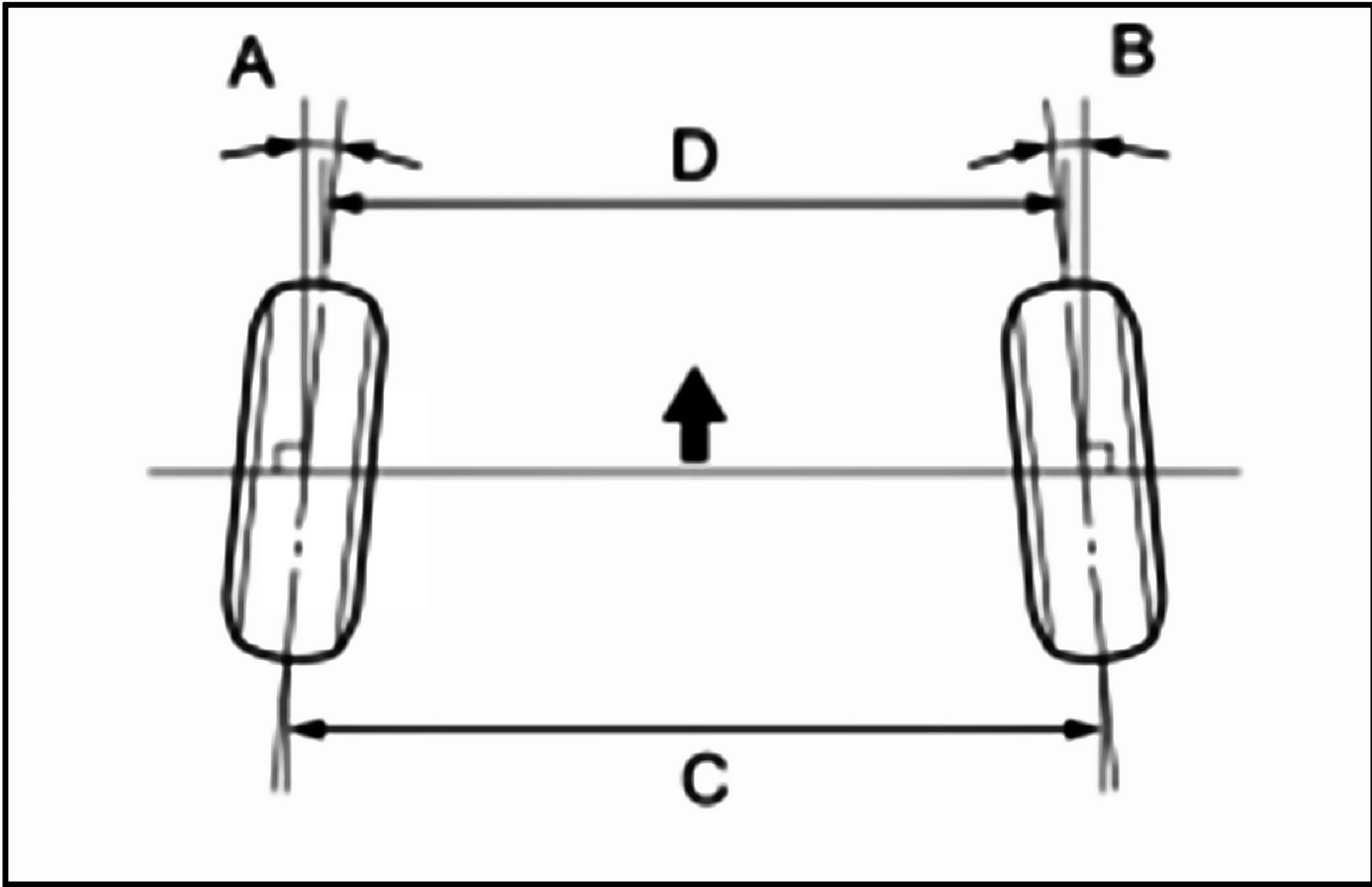

Measurement Points - Toe-in:

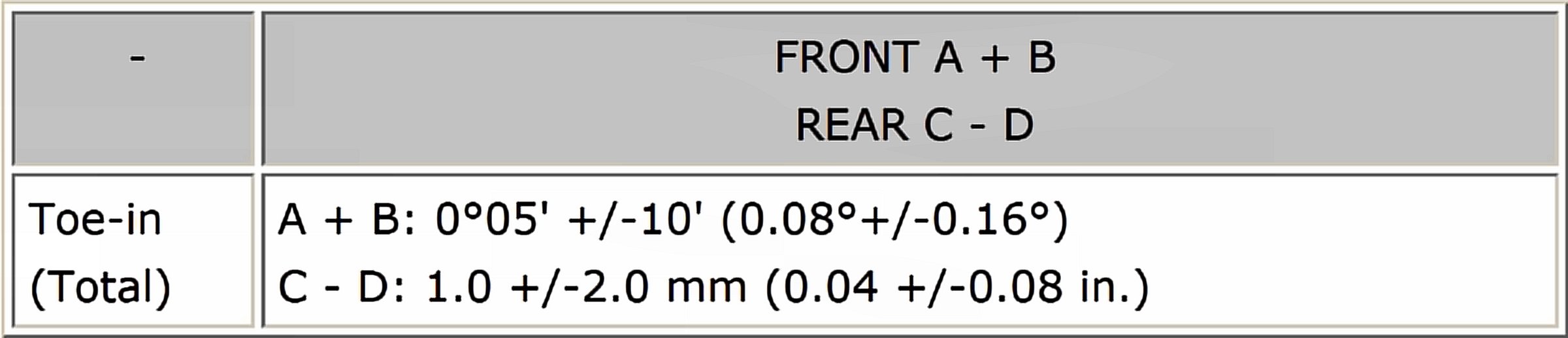

Toe-in:

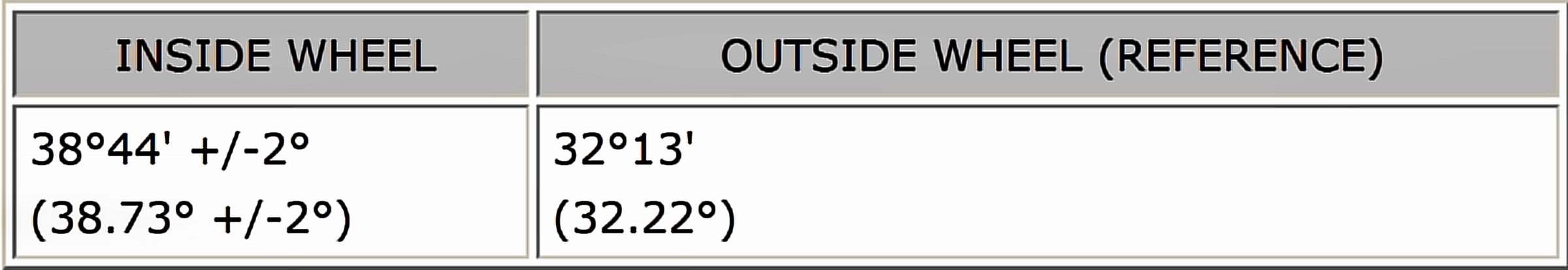

Standard Wheel Turning Angle:

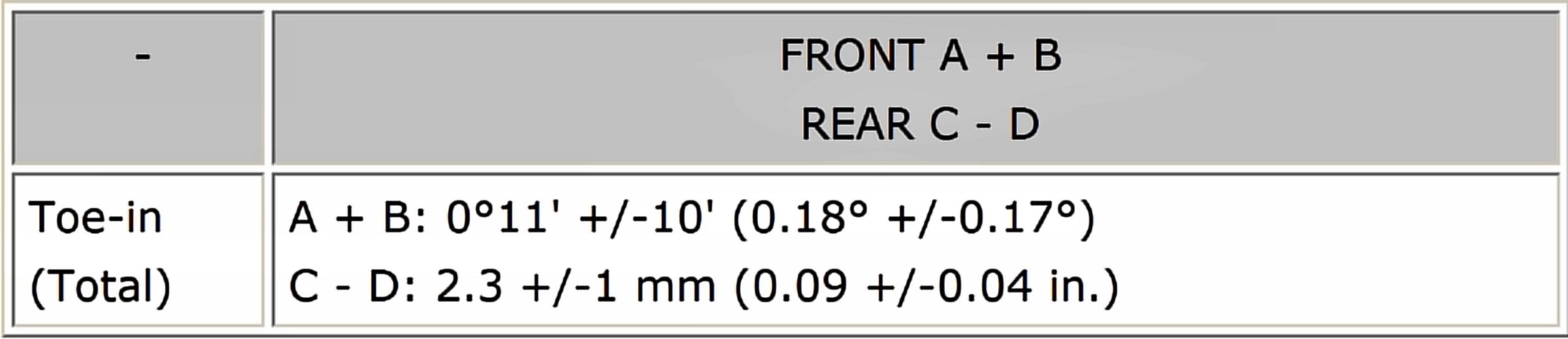

Rear Toe-in:
Standard Rear Camber:
