Disassembly

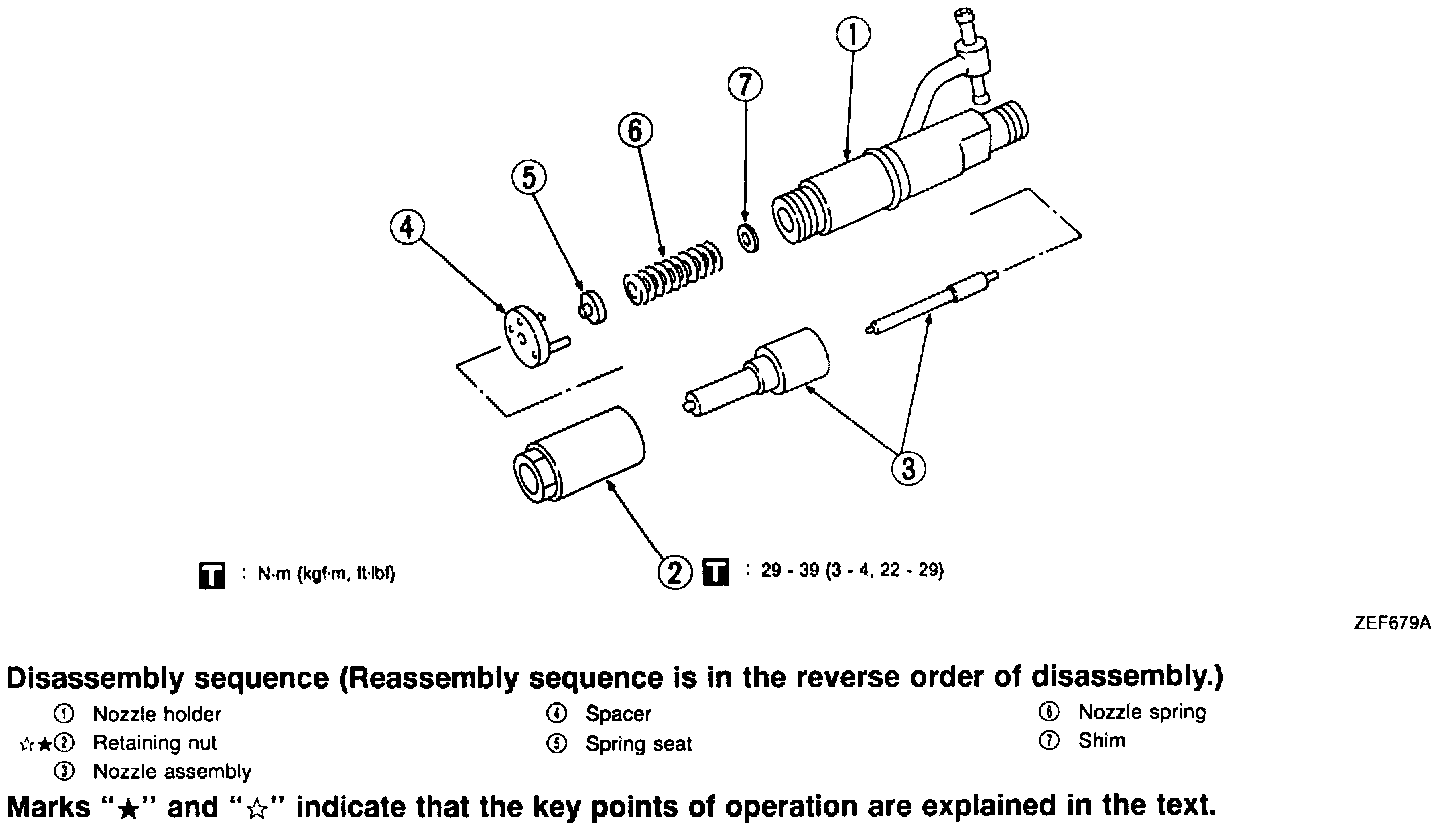

DISASSEMBLYKey point of disassembly(2) Retaining nutAlways remove the retaining nut with its width-across-flat areas placed in a vise.
NOTE: -
Arrange the component parts of each nozzle holder assembly for the corresponding cylinder as a set. Parts cannot be interchanged with another cylinder.
-
Do not place the retaining nut area in the vise.
