P0617

STARTER SWITCH







1. CHECK THE VOLTAGE BETWEEN TERMINALS.

WARNING: Make sure that transmission is in neutral position.







1. Set the starter switch to "LOCK" and connect the signal check harness.
2. Disconnect the signal check harness connector on the ECU side.

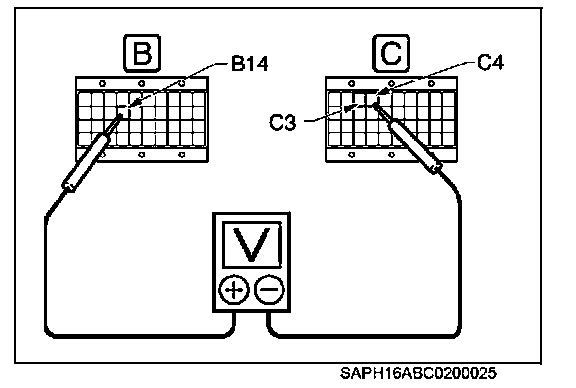

3. Measure the voltage between ST (B14) and CGD (C3 and C4) terminals of ECU connectors (vehicle harness side).

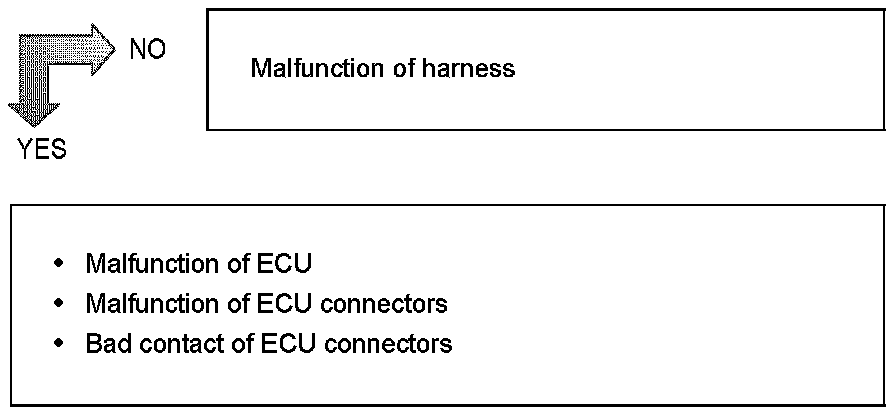

Standard:
Starter switch "LOCK": 0 V
Starter switch "START": 12 V
