Home >> UD >> 2007 >> 1300 L4-4.7L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams

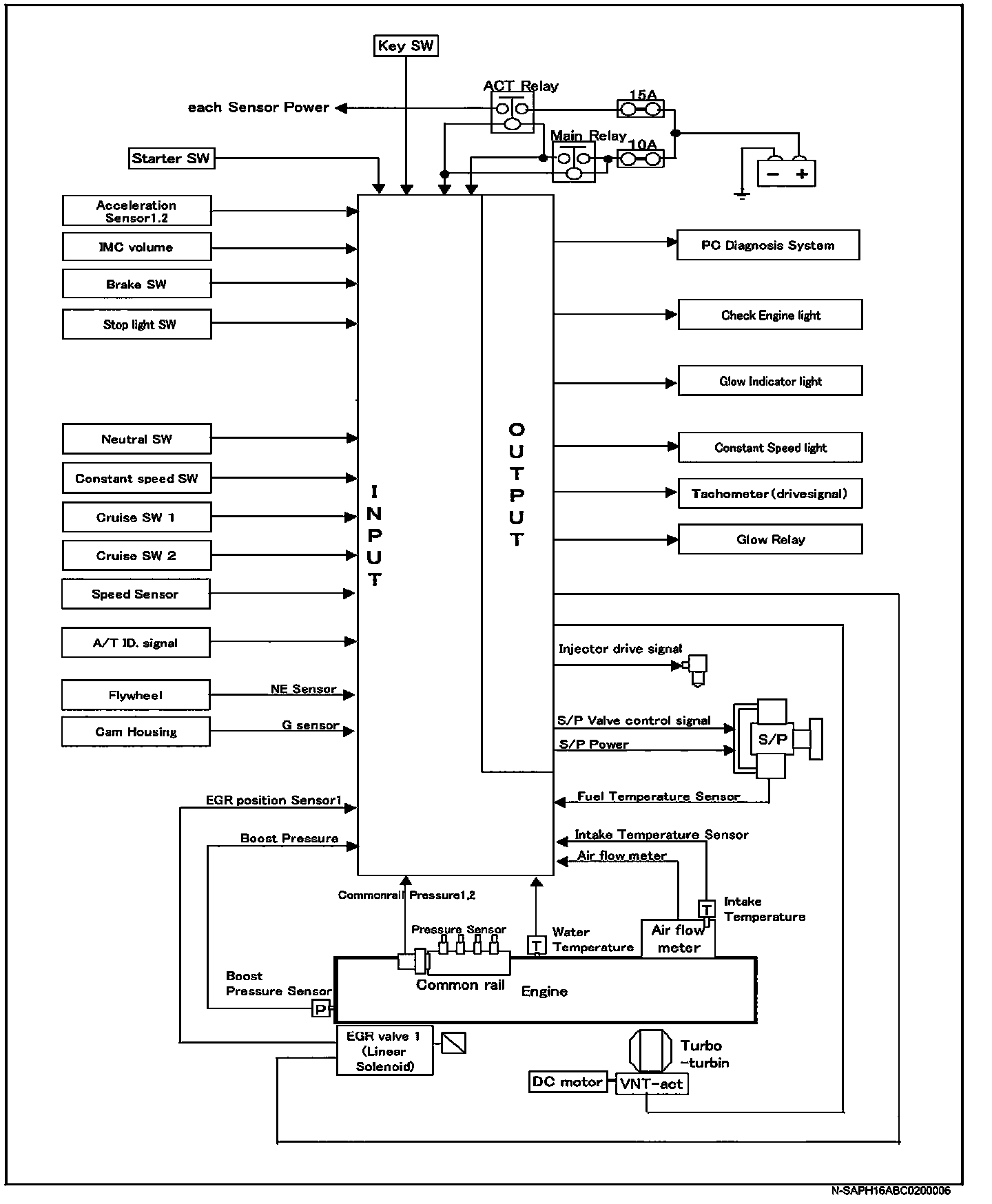

Engine Control Module: Diagrams
