With A/C
NOTE: The fresh air blower motor is located on top of the heater box. The motor is reached from the engine compartment by removing the plastic drip tray at the base of the windshield.
1.
Remove the plastic screen covering the fresh air inlet.
2.

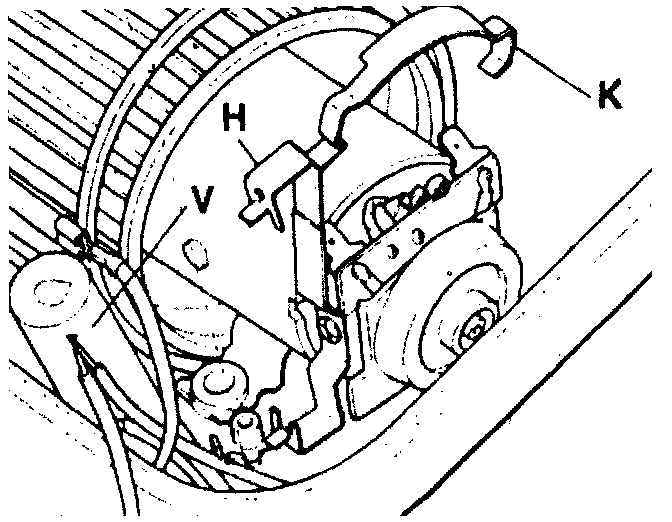

Detach
series resistance (V) from bracket (H).
3.
Remove clamp (K).
4.
Tilt the motor up and out.
NOTE: Installation is the reverse of removal.
