Radiator - Reference Chart

83VW03 Applies To QUANTUM

(ALL)
Group

19

Subject:

Radiator

Part Identifier 19 70
Key Points

Radiator reference chart

C
Number

83-05

July 27, 1983

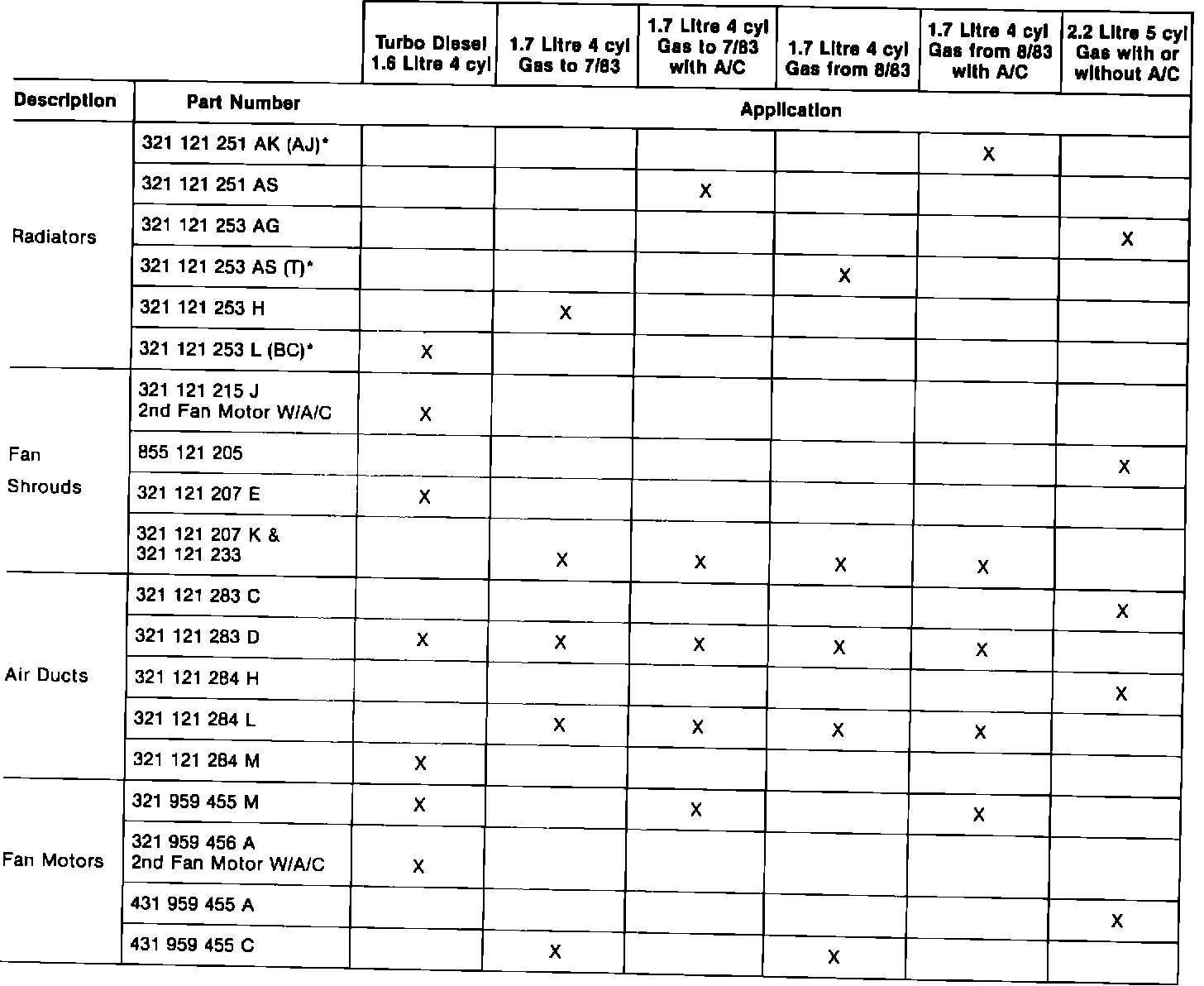

Attached radiator reference chart has been designed to clarify specific applications of Quantum radiators and related parts...
* Letter(s) in parenthesis indicate(s) previous Part Number
CAUTION Part numbers are listed for reference only. Always consult with the Parts Dept. for latest information.
