Thermo-Time Switch, Checking
Thermo-time switch, checking engine cold, air temperature below
2O° C (68° F) -
Pull electrical connector off cold-start valve
-

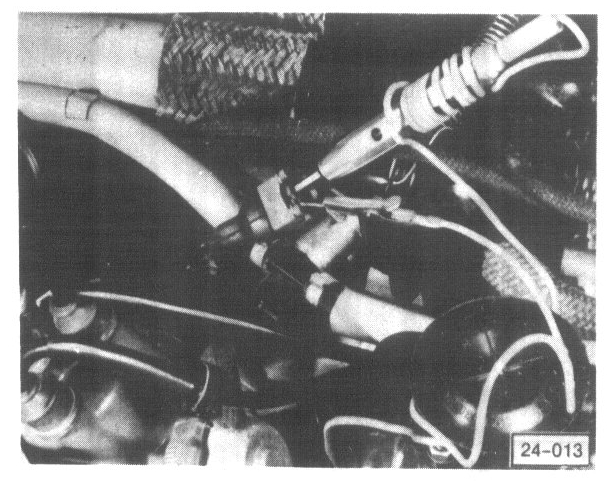

Connect test light
-
Pull wire off ignition coil terminal 1
-
Operate starter
Test light must light up brightly after 11 seconds (maximum) test light must dim or go off
