Double Relay, Checking
Checking The Double Relay -
Detach relay from firewall (do not unplug connectors)
-

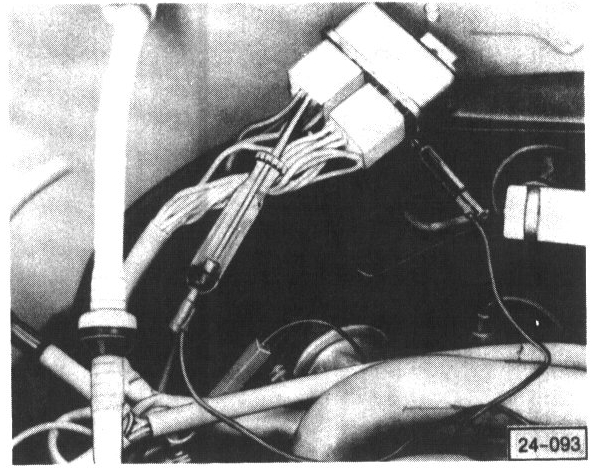

Check for voltage at terminals at relay by attaching one lead of test light to terminal 85 and touching other lead to following:
86a
88y
88d
-
Operate starter
Test light must light up
If NO, check wire to battery or inline fuse
If wire or inline fuse OK, double relay defective and must be replaced
