Temperature Sensor I, Checking
Air Temperature sensor I, checking Note: The Air Temperature Sensor is part of the Intake Air Sensor and cannot be replaced separately.
-

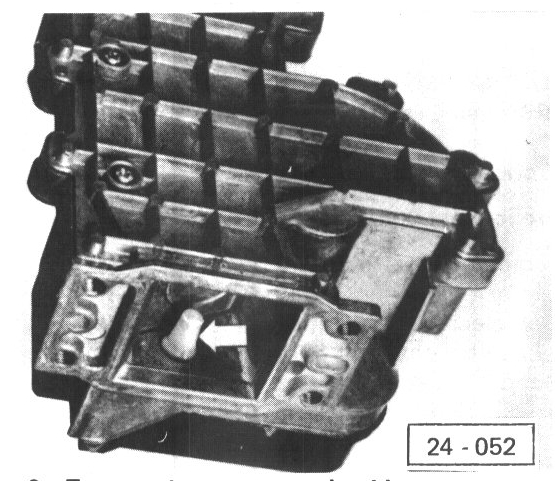

Check that intake air sensor (arrow) has reached room temperature of
20°C (68°F) before checking
-
Connect ohmmeter to terminals 6 and 27 of the Air Flow Meter
Meter should read
2300-2700 ohms
