Full Throttle Enrichment Switch, Checking

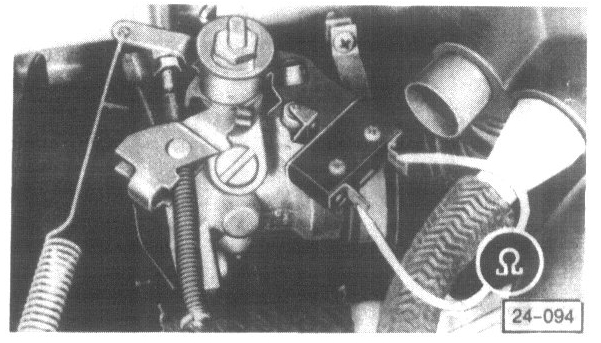

Checking Full Throttle SwitchWork sequence -
"Zero" ohmmeter and connect to contacts on switch
with throttle valve closed, ohmmeter must read infinite ohms
-
Open throttle valve slowly
just before reaching stop, ohmmeter must read 0 ohms
If NO, switch must be adjusted or replaced
