EGR Valve, Checking

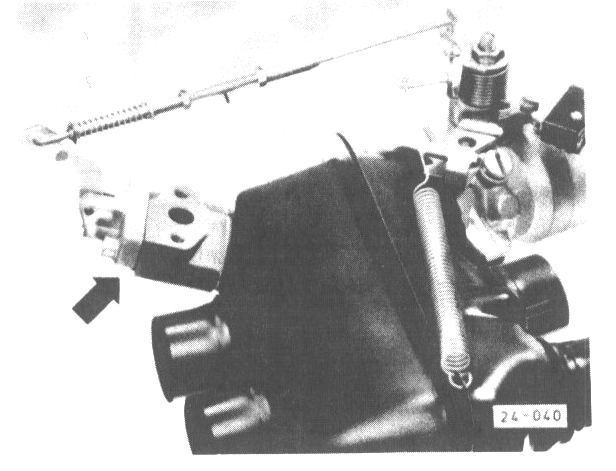

EGR valve, checkingWork sequenceNote: EGR valve (arrow) is operated mechanically by throttle valve lever
Checking in Idle speed position - run engine at idle
- check pipe to
EGR valve pipe should not warm up
Checking In full throttle position - disconnect rod for
EGR valve - run engine at idle
- push lever on
EGR valve to full throttle position
- check pipe to
EGR valve pipe should not warm up
