California
Ignition timing, adjusting with timing light
Work sequence
Note: Oil temperature must be at least 60°C (140°F)

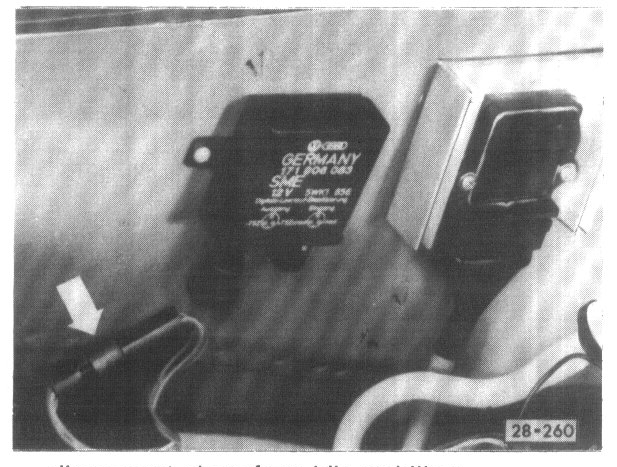

- Disconnect plugs from idle stabilizer
Squeeze connectors to release
- Connect plugs together (arrow)
- Start engine
- Adjust engine idle to 850 - 950 rpm

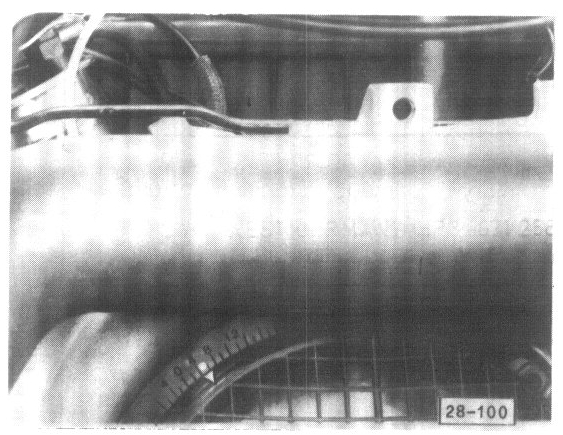

- Flash timing mark with timing light mark on pulley must align with red mark on scale
- If necessary, loosen distributor clamping bolt and turn distributor
- Reconnect idle stabilizer
- Retighten clamping bolt
