Engine Specifications and Clearances

Air Cooled AFC Engine Design Specifications

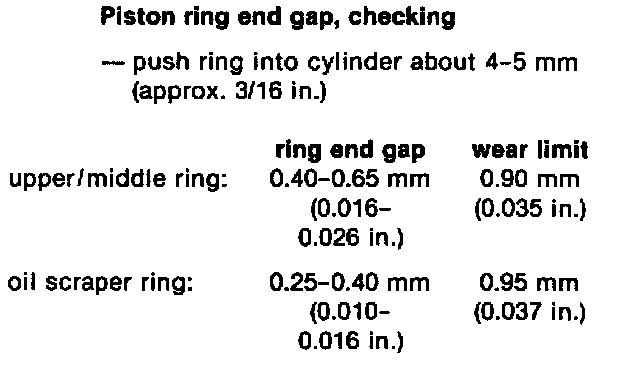

Piston Ring End Gap:

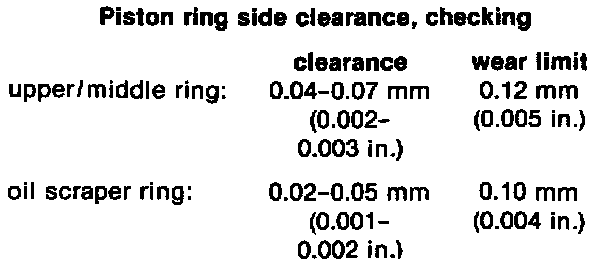

Piston Ring Side Clearance Specifications:

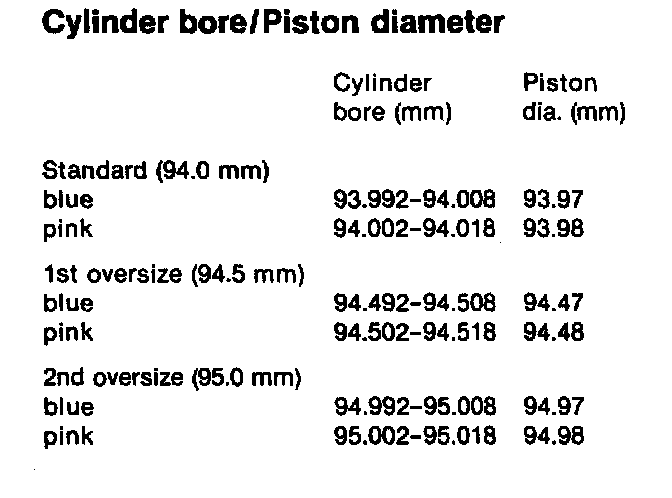

Cylinder Bore/Piston Diameter Specifications:

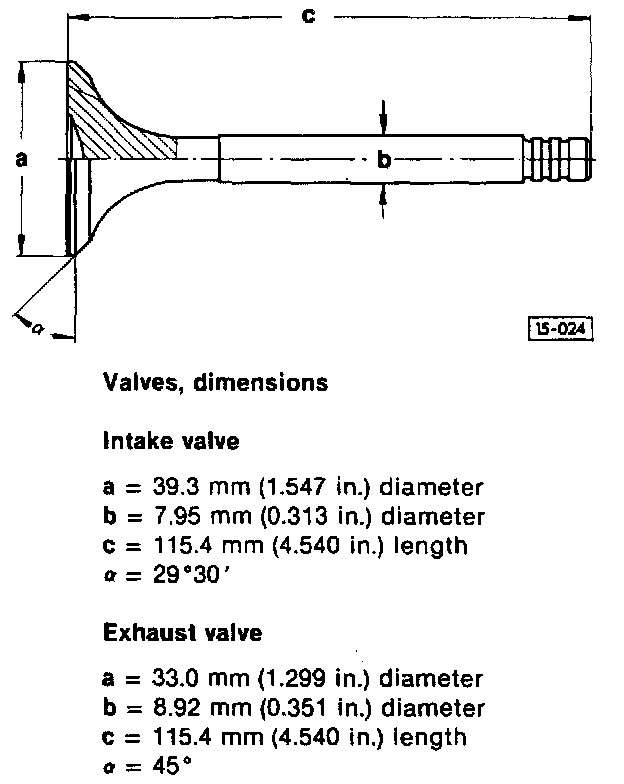

Valve Deminsions Specifications:

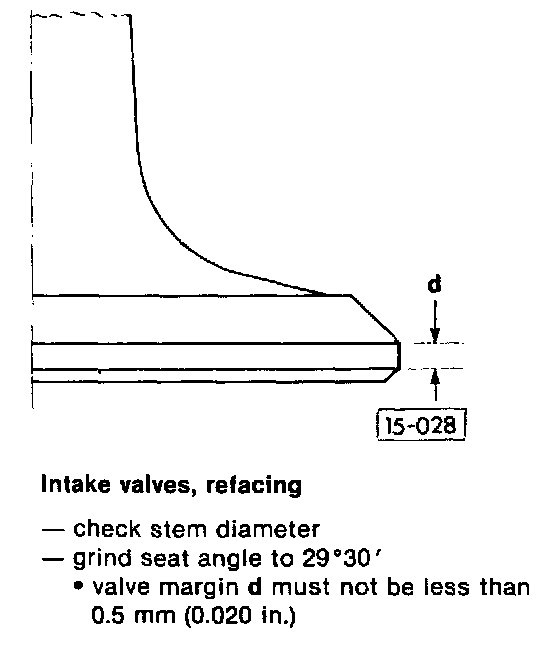

Intake Valve Refacing Specifications:





CAUTION
Do not rework exhaust valves by machine; lap by hand only

Valve Specifications:

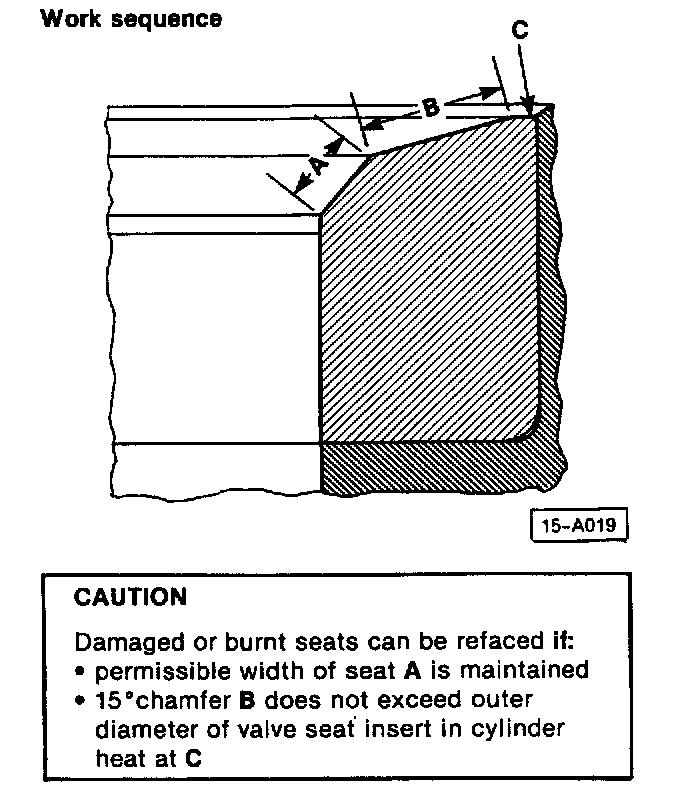

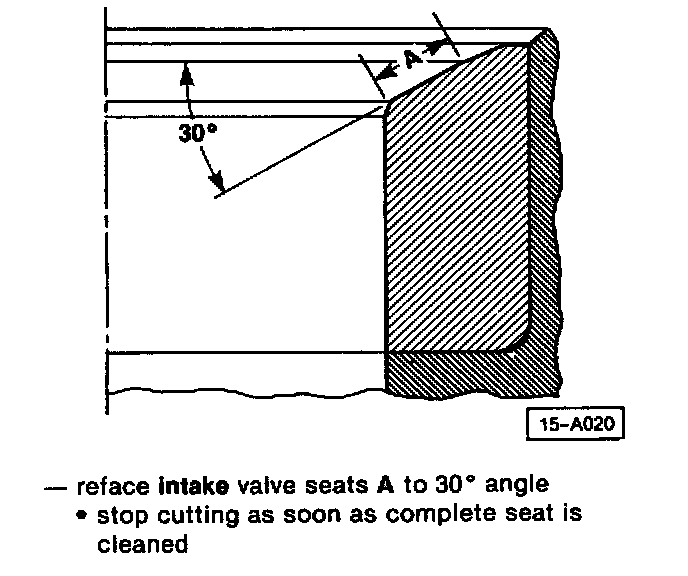

Intake Valve Seat Specification:
