(Late Version)

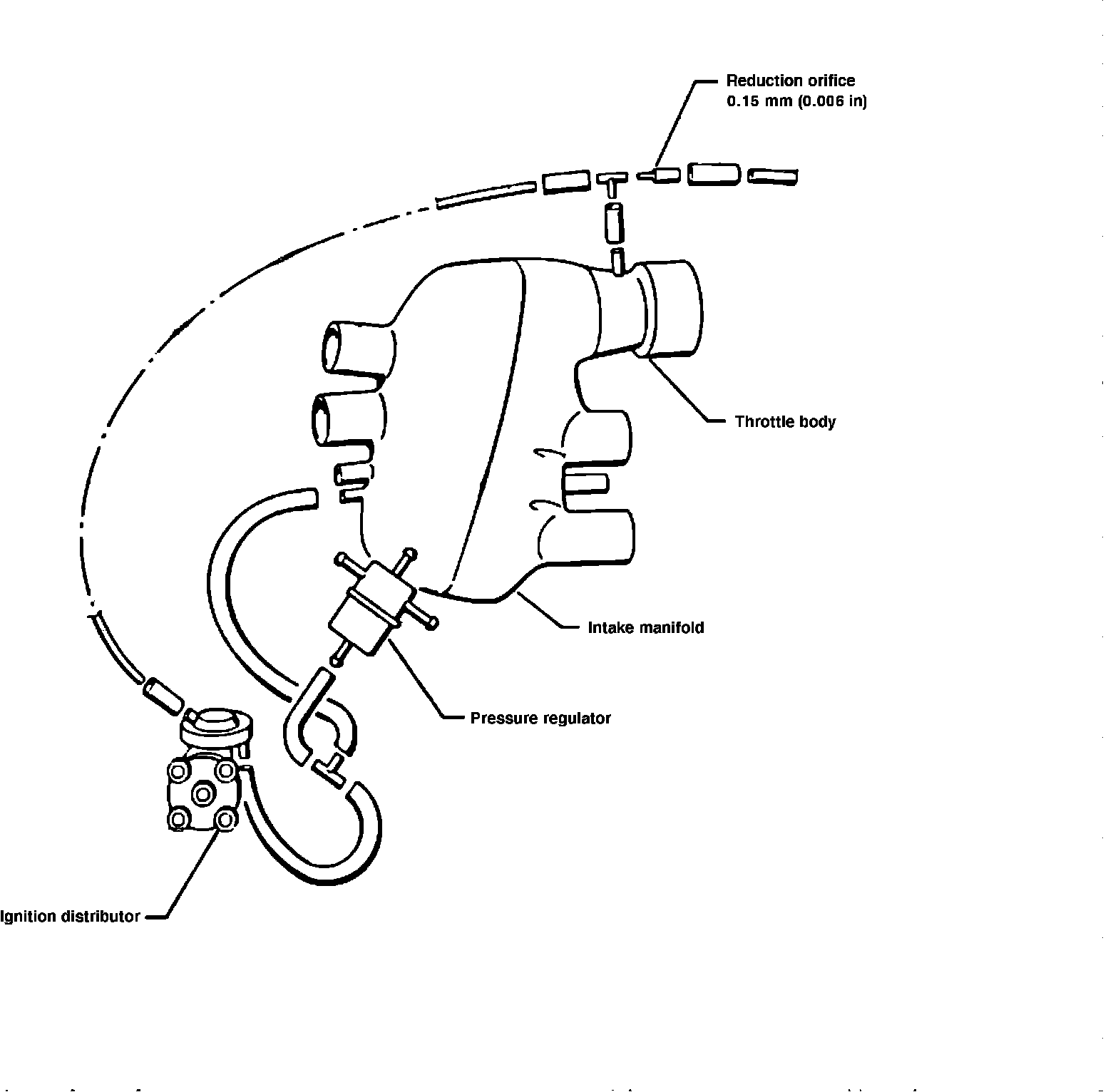

Fig. 15 Vacuum Hose Diagram, Vanagon (Late Version):

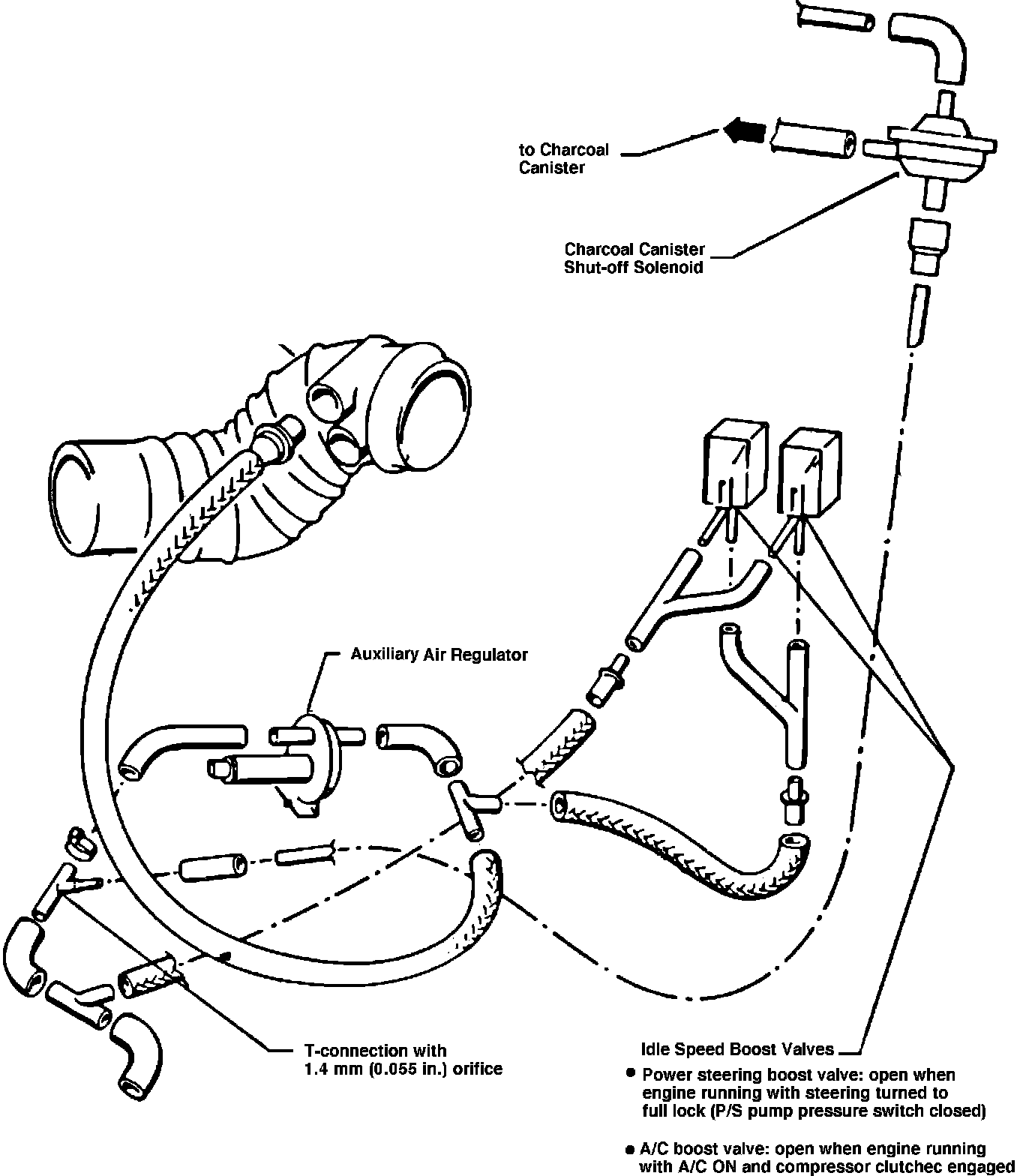

Fig. 16 Idle Control Hose Diagram, Vanagon (Late Version):
