Ignition Timing: Adjustments

Ignition timing, adjusting

Work sequence

Caution: Ignition must be switched OFF before connecting tester






- Connect tester according to manufacturer's instructions
- Connect + (plus) cable to alternator or junction box

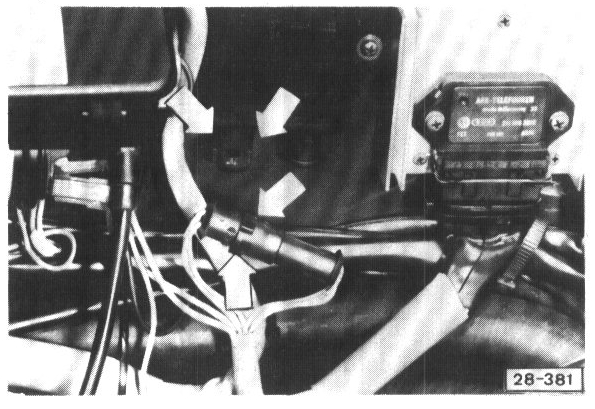

- Disconnect idle stabilizer plugs from control unit (squeeze plugs to release-upper arrows)
- Connect plugs together (lower arrows)
- Adjust idle speed to 850 ±50rpm

Adjusting ignition timing with TDC sensor:
Ignition timing is indicated directly on tester.
Specification = 5° ATDC

Adjusting ignition timing with timing light:
- Shine timing light on timing mark.
Mark on pulley must align with crankcase half parting line.
