Wheel/Tires/Alignment - Specifications

86VW2

Applies To SCIROCCO 16 V


1986
Group


44
Subject

Wheels/Tires/Alignment


Part Identifier N/A
Key Points

Wheel and tire sizes, alignment specifications


A230
Number


86-01

June 18, 1986
The following parts on the Scirocco 16 V are different from those used on Sciroccos produced with 66 kW/90hp engines:

^ wheel size: 6J x 14 ET 38 wheel type: alloy
^ tire size: 185/60 HR 14

Wheels/tires from the Scirocco 16 V may be installed as a set on earlier Sciroccos from U..S. Model Year 1982.

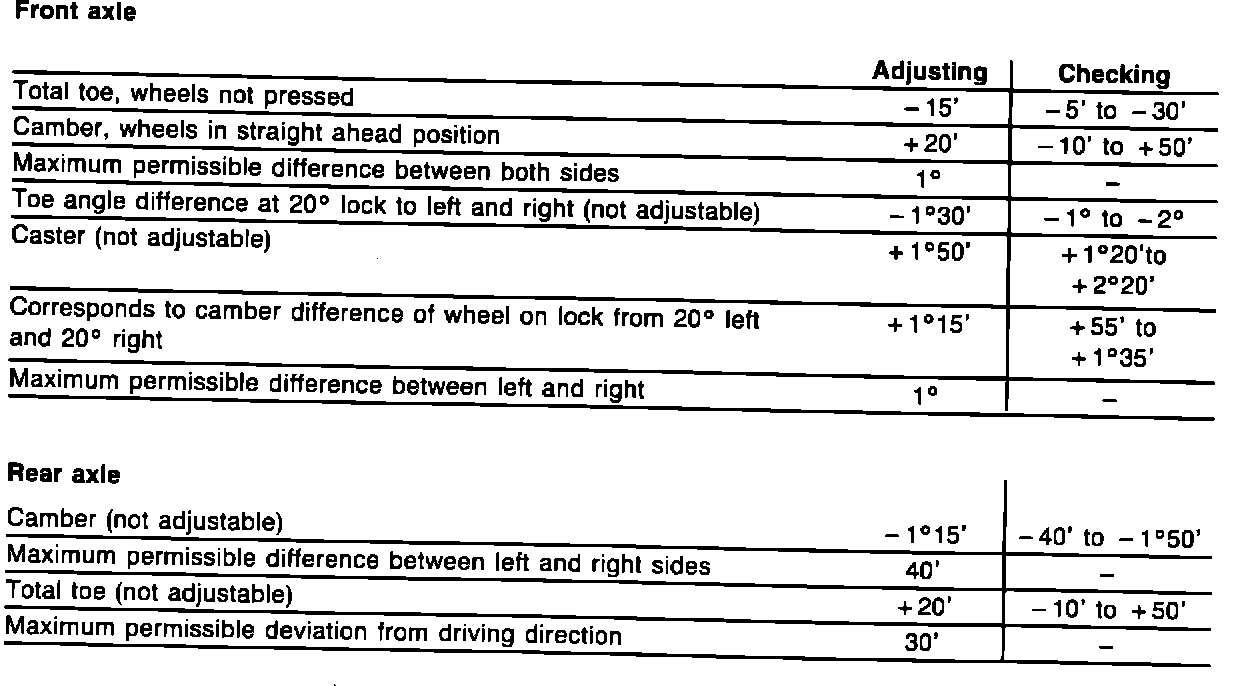

Wheel alignment data for front and rear axles (same as Sciroccos with 66 kW/90hp engine)
