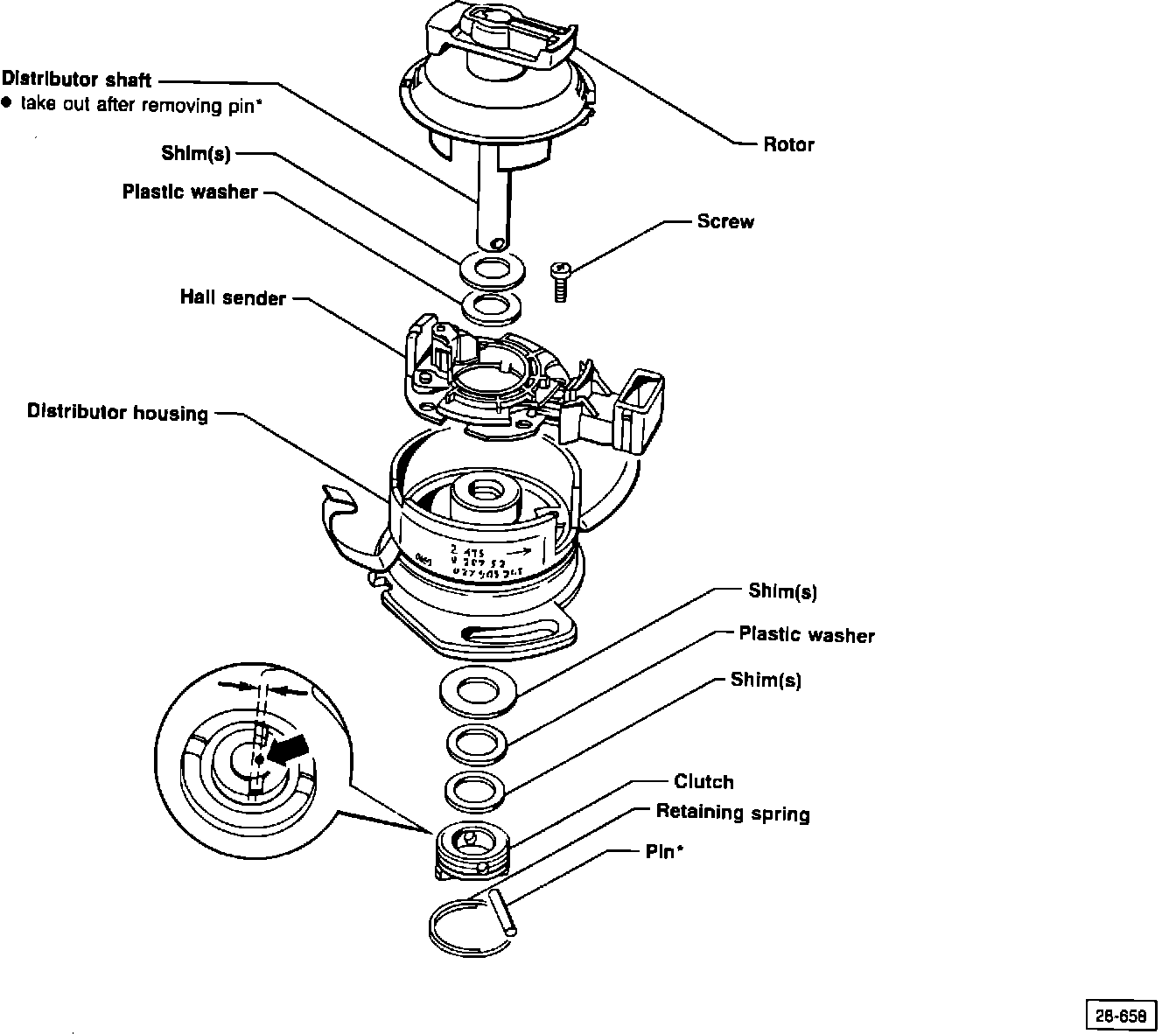

Ignition Distributor Exploded View

Note

The rotor is glued to the shaft. If the rotor has to be replaced, it can be removed by destroying it. This can be done by crushing it with a pair or pliers. Carefully remove any adhesive residue from the shaft and glue on new rotor. Use adhesive AMV 185 100 01 or equivalent such as high temperature instant adhesive "Loctite 325 Speed Bonder."

CAUTION

Do not hit rotor, there is danger of damaging the rotor shaft or bearing
