Intake Manifold: Service and Repair

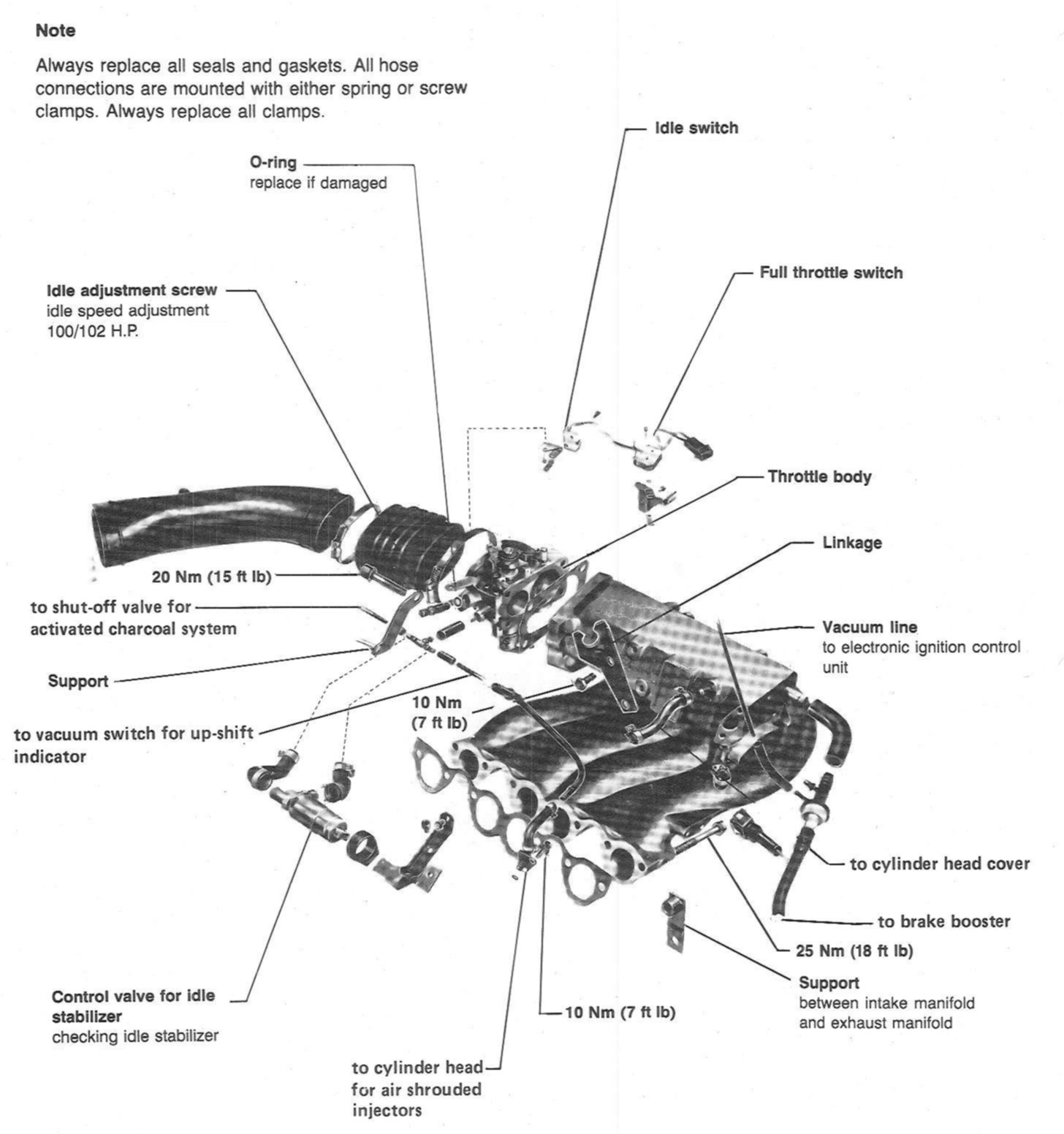

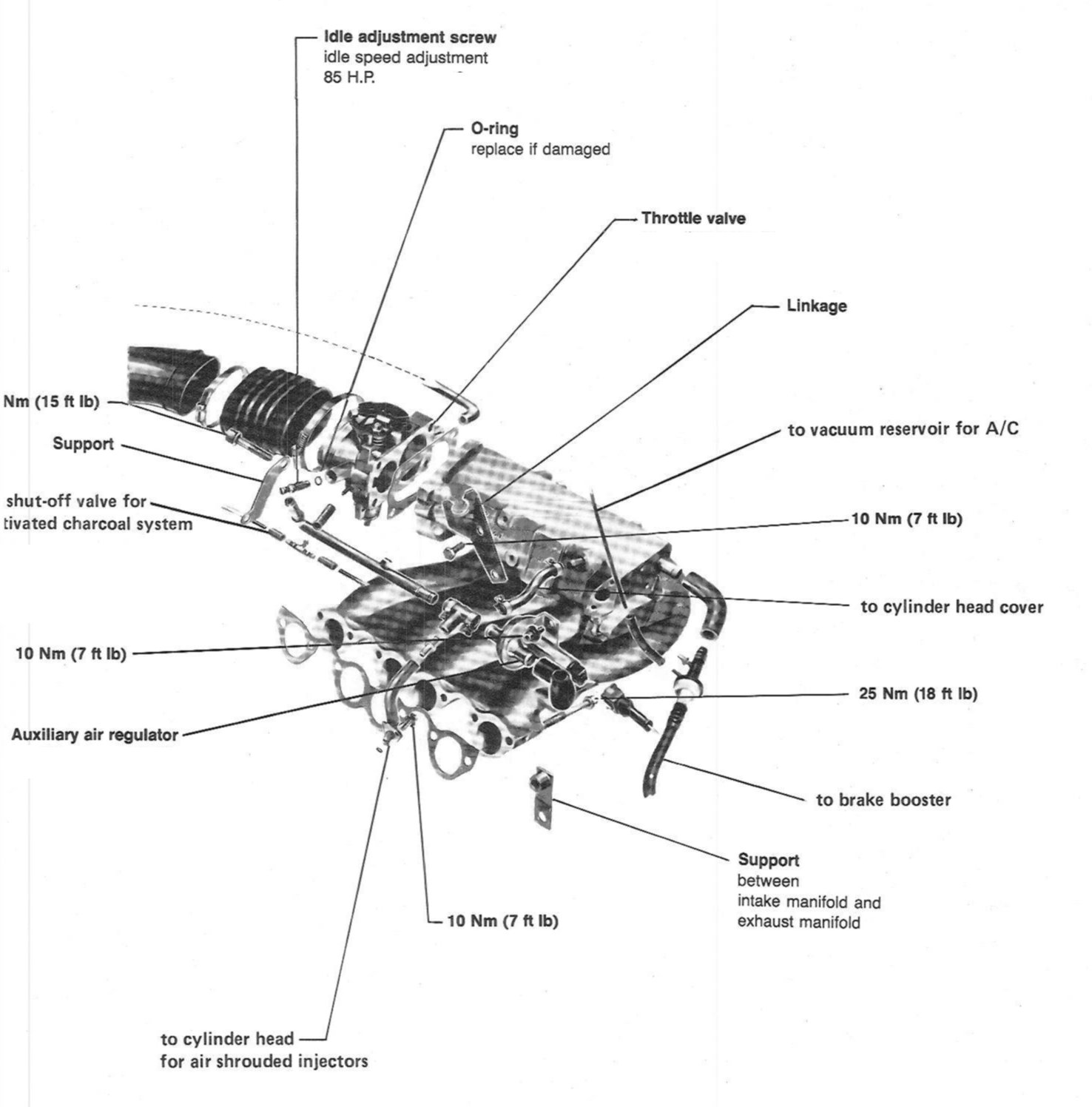

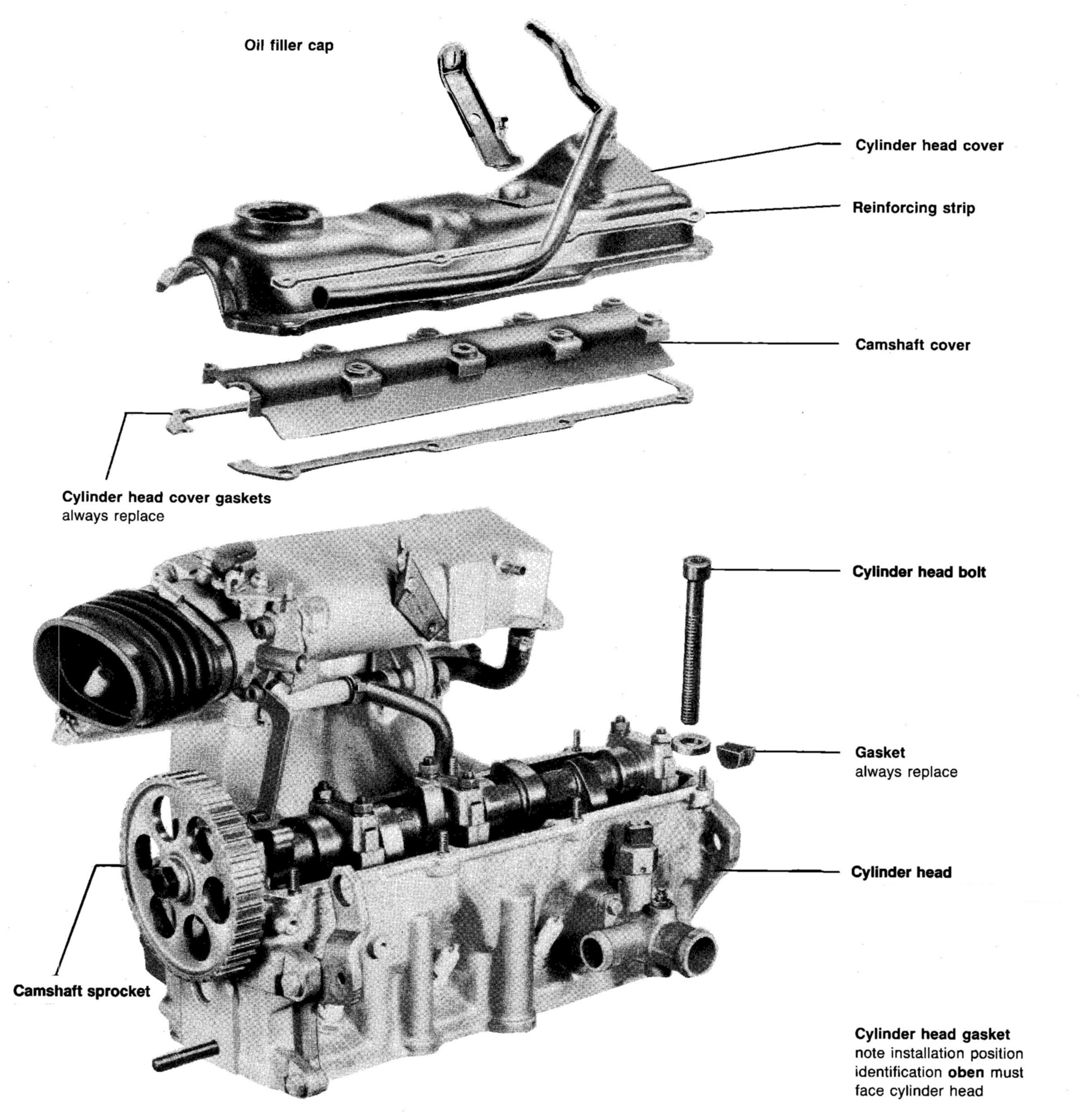

Cylinder head removed85 H.P.100/102 H.P. -
Disconnect the negative cable from the battery.
-
Disconnect all the hoses from the
intake manifold, and the throttle valve housing.
CAUTION! Carefully mark each hose upon removal so as to reinstall in original locations.
-
Remove
intake manifold bolts.
25 Nm (18 ft lb) -
Reverse procedure to install.
