System Check With Volt/Ohmmeter (Digifant II)

System Check With Volt/Ohmmeter (Digifant II)

Requirements

- Ignition switched OFF.
- Digifant E.C.U. multi-pin connector disconnected.
- High voltage coil wire removed from ignition distributor and grounded.

CAUTION To avoid damage to control units, switch multimeter to appropriate range before connecting to components.




*Note: On Golf, check total resistance of fuel injectors at fuel injection wiring harness connector.

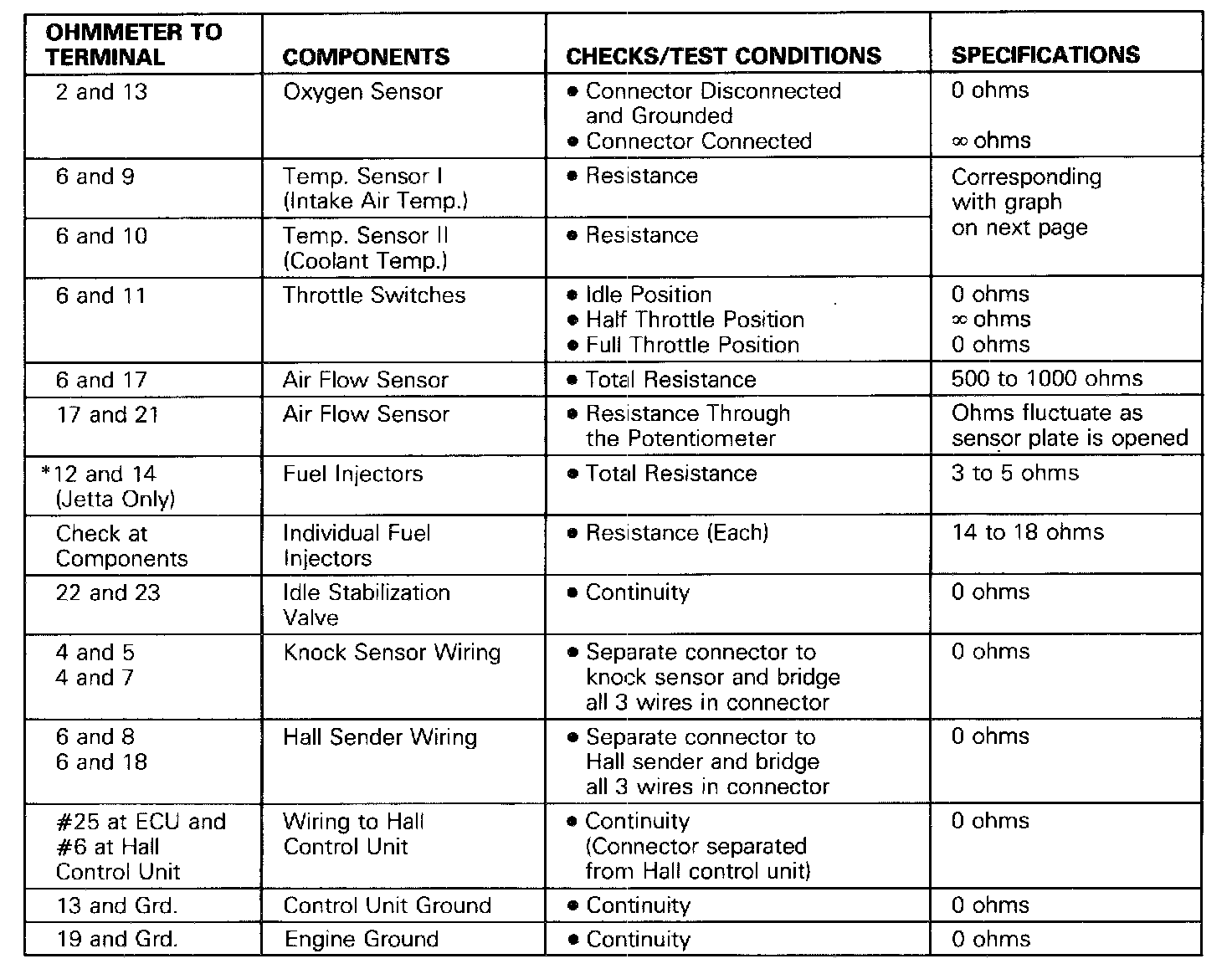

Terminal Chart:




25-Pin Connector:




Temperature Sensor Chart:
