Cooling System: Testing and Inspection

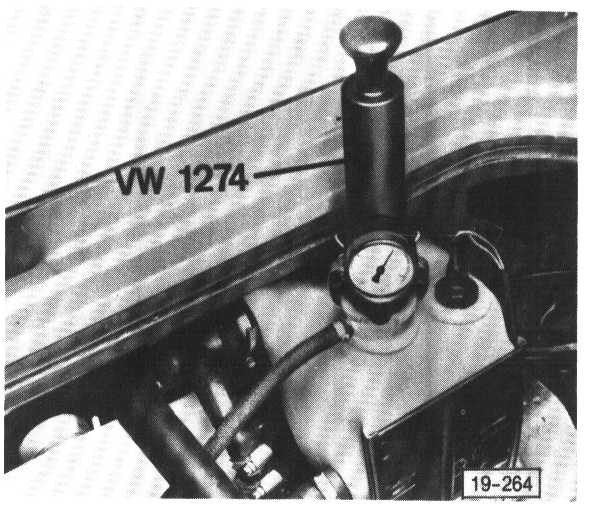

Cooling System, Checking For LeaksFig. 9:
-
attach tester in place of pressure cap
Stant tester St-255 A, AC-PCT3 or equivalent
-
apply pressure of approx.
1 bar (14.5 psi) it pressure remains constant, system is OK
if pressure drops, look for leaks and eliminate
