Powertrain Management: Diagrams

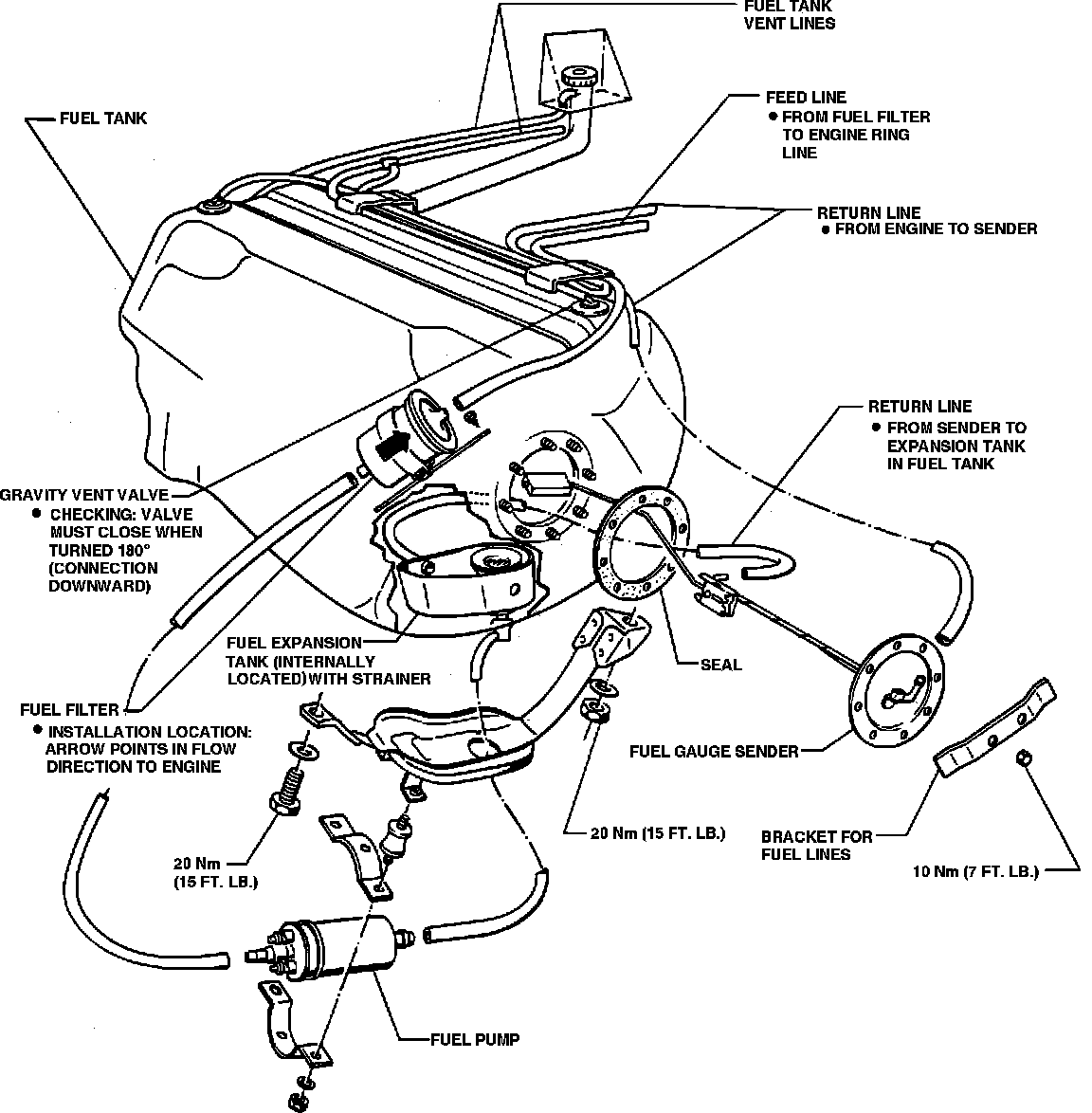

Fuel Tank And Components:

FUEL TANK DIAGRAM

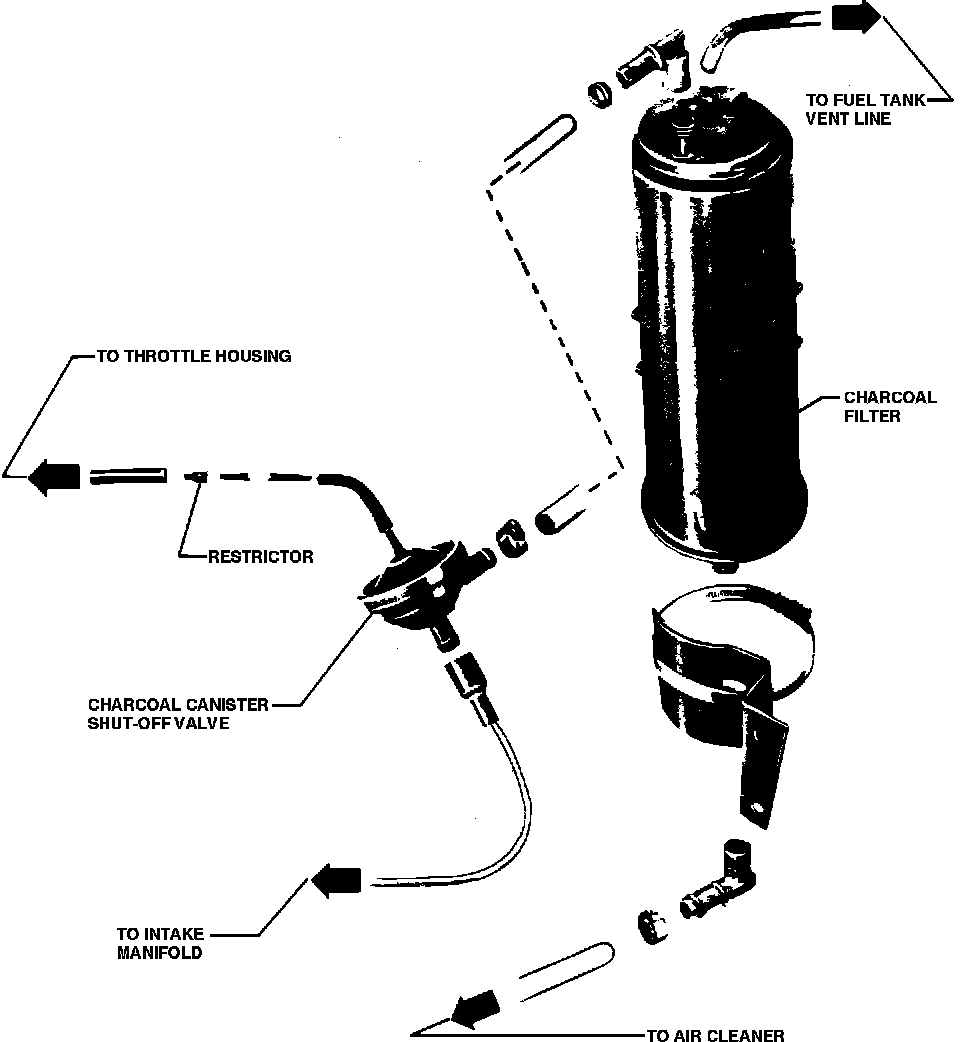

Charcoal Canister And Shut-Off Valve:

EVAPORATIVE EMISSION DIAGRAM

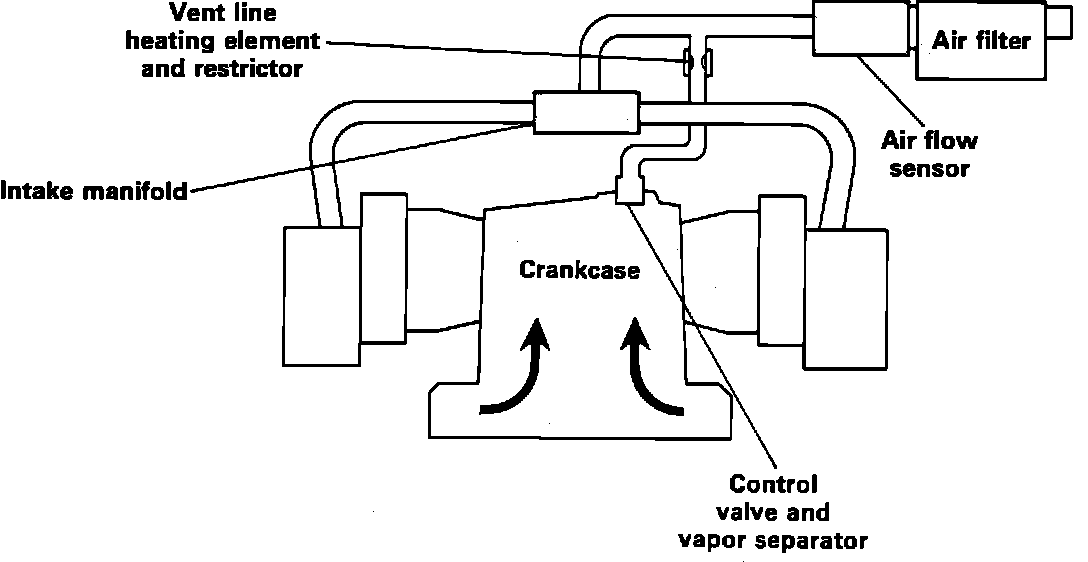

Positive Crankcase Ventilation (PCV) Layout:

POSITIVE CRANKCASE EMISSION SYSTEM DIAGRAM
