Coil Spring - Installation Position

9221vw01

GROUP
42


NUMBER
89-01
August 31, 1989


MODEL(S):
Vanagon Syncro, all m.y.


SUBJECT:
Coil spring, installation position

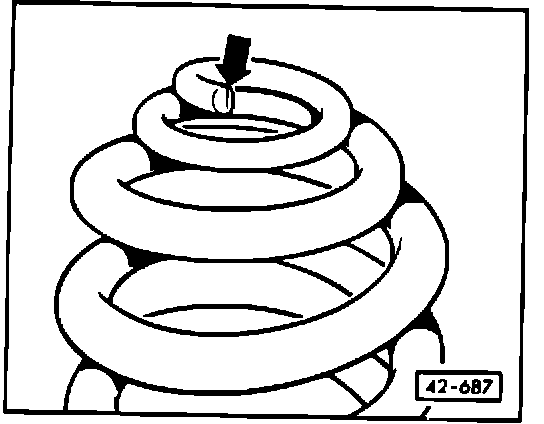

The inner diameter of the last winding on the beveled end of the spring (arrow) is slightly smaller than that ot the opposite side of the spring.


If the smaller end of the spring is installed downward (toward the control arm) noises can occur as the spring twists on the base of the control arm during heavy axle springing/braking.


For the above reasons the coil spring must be installed with the smaller tip pointing upwards: NOT as stated in the repair manual.





^ the tip of the spring with the beveled tang (arrow) must be inserted into the UPPER coil spring receptacle
