Cruise Control System - Checking: Overview

90vw09
Subject: Cruise control system, checking (automatic and manual transmissions)

Model(s): Passat 1990-1991
Group: 27

Number: 90-02

Date: December 30, 1990

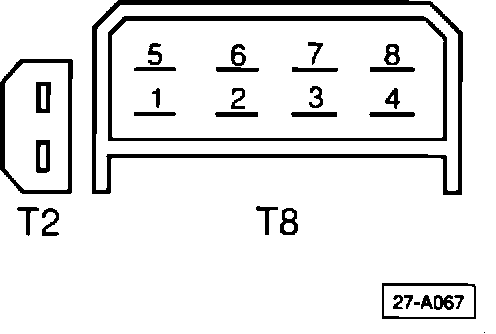

^ disconnect harness connector from control unit for cruise control
^ connect the following multimeter and adaptors to this harness connector as indicated in the troubleshooting procedures

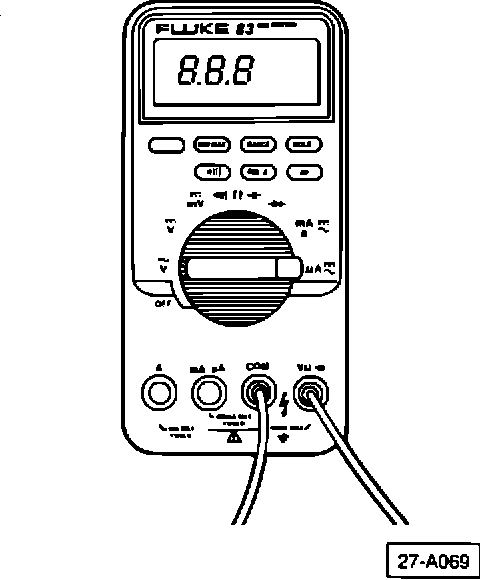

Fluke 83 multimeter (US 1119)
^ always connect to circuit with ignition switched OFF
^ only change units or ranges with ignition switched OFF



VW 1594 adaptor kit
^ use to make all connections between multimeter and connector and to jumper between connector terminals
