Timing Component Alignment Marks: Locations

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.



Timing Component Alignment Marks

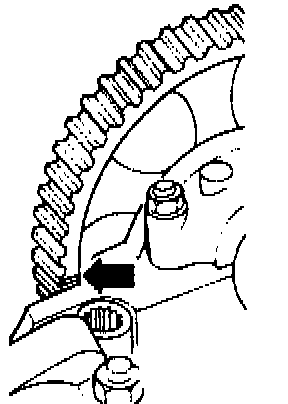

Cylinder head cover, installed
- align mark on cover with marks on camshaft sprocket

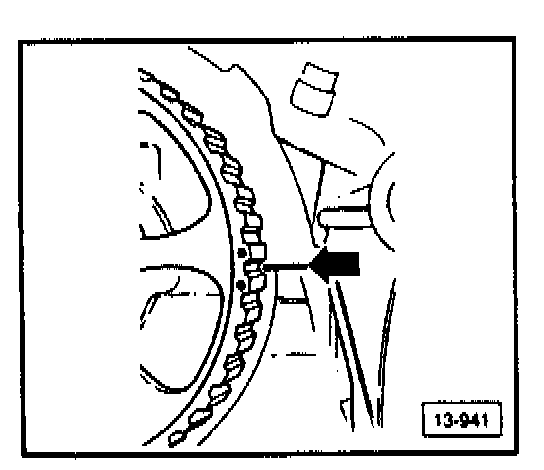

Cylinder head cover, removed
- align mark on camshaft sprocket with cylinder head cover




- align mark on crankshaft pulley vibration dampener with mark on intermediate sprocket (TDC cylinder 1)

For further information refer to Timing Belt : Service and Repair
Service and Repair





For complete Timing Belt Removal and Installation information: Service and Repair
