Mixture Calibration Potentiometer: Locations

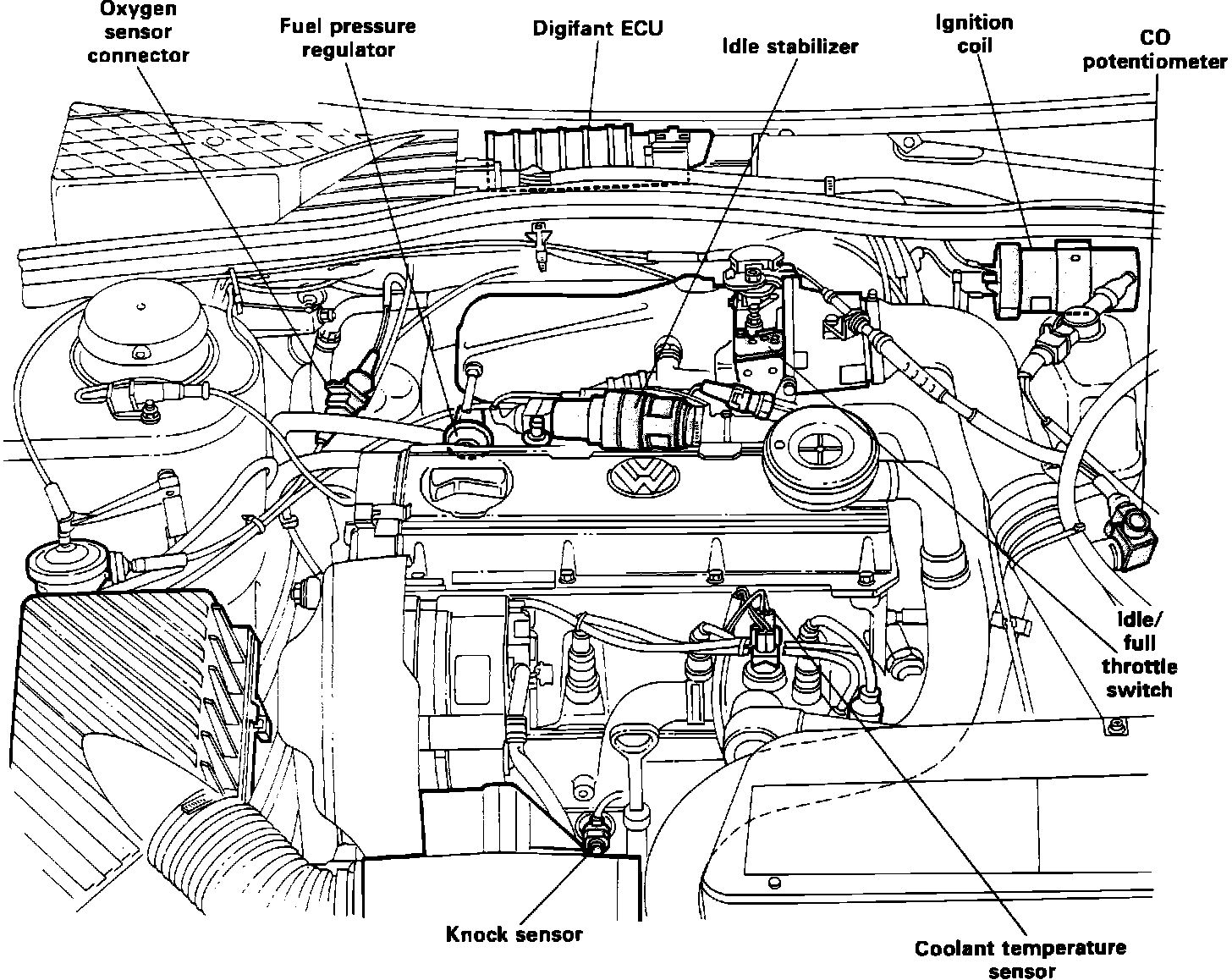

Digifant Component Location:

The CO potentiometer is located on the left side (drivers side) of the engine compartment near the fender. It is attached to the intake air hose ahead of the throttle valve.
