Data Link Connector: Testing and Inspection

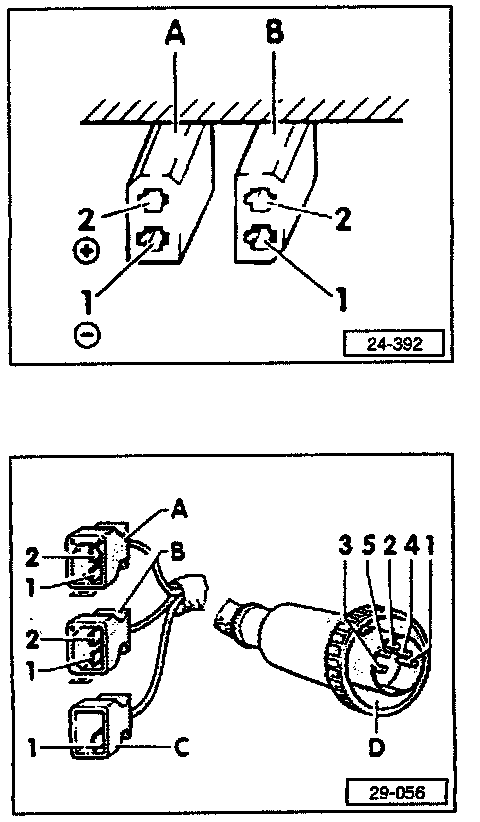

VAG 1551 Scan Tool Connection Key:

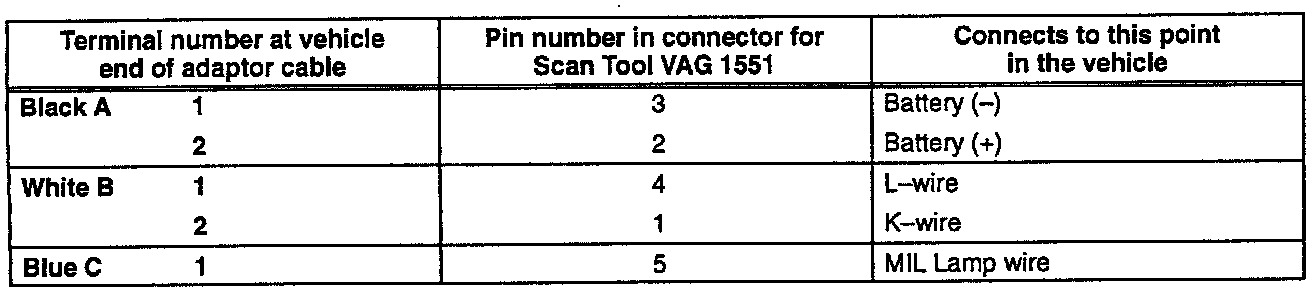

VAG Scan Tool Connections:
-
Check for voltage at Data Link connectors in vehicle, observe polarity while performing this checks.
-
If battery voltage is not obtained, check wiring using wiring diagram,or refer to
VAG 1598 Pin Out Box/ Electrical Checks step 19.Repair or replace as necessary
